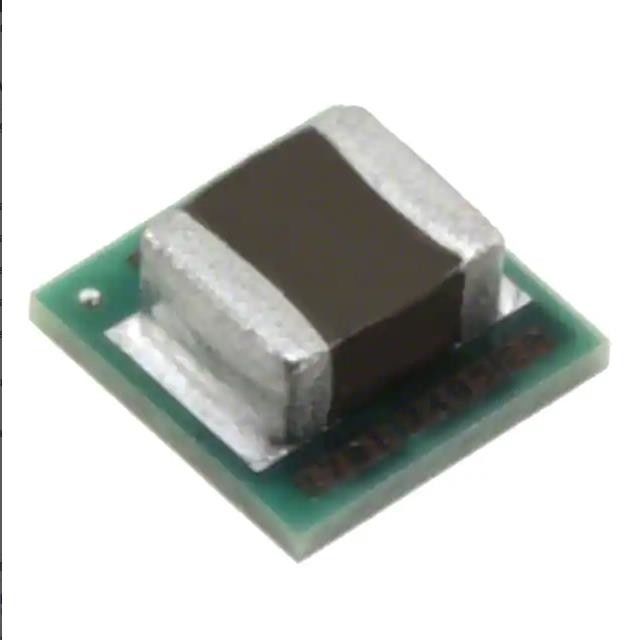

LMZ10501SILR Non-Isolated PoL Module DC Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LMZ10501SILR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Topology: | Buck | Voltage - Input (Min): | 2.7V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output 1: | 0.6 ~ 3.6V |
| Size / Dimension: | 0.12" L X 0.10" W X 0.06" H (3.0mm X 2.6mm X 1.5mm) | Supplier Device Package: | 8-uSIP |
Product Description
LMZ10501SILR Non-Isolated PoL Module DC Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Power Supplies - Board Mount
DC DC Converters
|
|
Mfr
|
T I
|
|
Series
|
SIMPLE SWITCHER® Nano
|
|
Product Status
|
Active
|
|
Type
|
Non-Isolated PoL Module
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
2.7V
|
|
Voltage - Input (Max)
|
5.5V
|
|
Voltage - Output 1
|
0.6 ~ 3.6V
|
|
Voltage - Output 2
|
-
|
|
Voltage - Output 3
|
-
|
|
Voltage - Output 4
|
-
|
|
Current - Output (Max)
|
1A
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
OCP, OTP, UVLO
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Efficiency
|
95%
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-LDFN Exposed Pad, Module
|
|
Size / Dimension
|
0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm)
|
|
Supplier Device Package
|
8-uSIP
|
|
Control Features
|
Enable, Active High
|
|
Base Product Number
|
LMZ10501
|
Features of LMZ10501SILR
• Output Current Up to 1 A
• Input Voltage Range 2.7 V to 5.5 V
• Output Voltage Range 0.6 V to 3.6 V
• Efficiency up to 95%
• Integrated Inductor
• 8-Pin microSiP Footprint
• –40°C to 125°C Junction Temperature Range
• Adjustable Output Voltage
• 2-MHz Fixed PWM Switching Frequency
• Integrated Compensation
• Soft-Start Function
• Current Limit Protection
• Thermal Shutdown Protection
• Input Voltage UVLO for Power-Up, Power-Down, and Brownout Conditions
• Only 5 External Components — Resistor Divider and 3 Ceramic Capacitors
• Small Solution Size
• Low Output Voltage Ripple
• Easy Component Selection and Simple PCB Layout
• High Efficiency Reduces System Heat Generation
• Create a Custom Design Using the LMZ10501 With the WEBENCH® Power Designer
Applications of LMZ10501SILR
• Point of Load Conversions From 3.3-V and 5-V Rails
• Space Constrained Applications
• Low Output Noise Applications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
