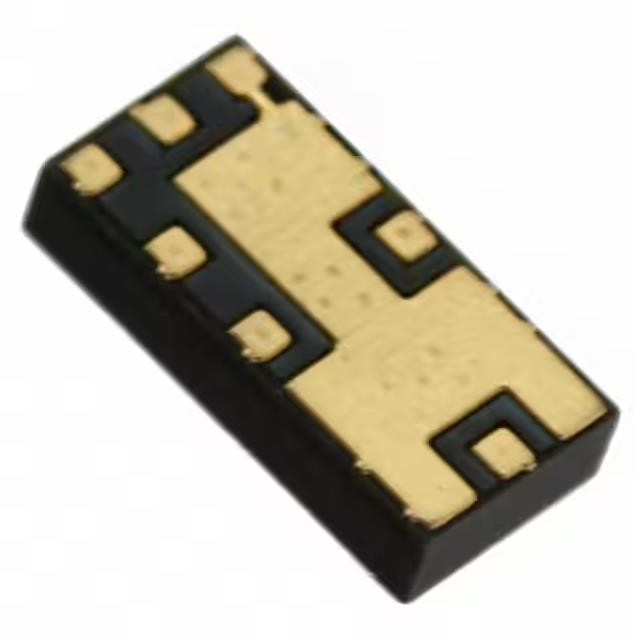

ALM-1412-TR1G Wireless RF Module AMP GPS 1.575GHZ 12MCOB 9.8mA
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ALM-1412-TR1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency: | 1.575GHz | P1dB: | 4.5dBm |
|---|---|---|---|
| Gain: | 12.2dB | Noise Figure: | 0.82dB |
| RF Type: | GPS | Voltage - Supply: | 1V ~ 3.6V |
| Current - Supply: | 9.8mA | Test Frequency: | 1.575GHz |
Product Description
ALM-1412-TR1G Wireless RF Module AMP GPS 1.575GHZ 12MCOB 9.8mA
RF Amplifier IC GPS 1.575GHz 12-MCOB (3.3x2.1)
Specifications of ALM-1412-TR1G
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
RF and Wireless
RF Amplifiers
|
|
Mfr
|
Broadcom Limited
|
|
Series
|
-
|
|
Product Status
|
Obsolete
|
|
Frequency
|
1.575GHz
|
|
P1dB
|
4.5dBm
|
|
Gain
|
12.2dB
|
|
Noise Figure
|
0.82dB
|
|
RF Type
|
GPS
|
|
Voltage - Supply
|
1V ~ 3.6V
|
|
Current - Supply
|
9.8mA
|
|
Test Frequency
|
1.575GHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
12-SMD Module, No Lead
|
|
Supplier Device Package
|
12-MCOB (3.3x2.1)
|
|
Base Product Number
|
ALM-1412
|
Features of ALM-1412-TR1G
• Very Low Noise Figure: 0.82 dB typical
• High Gain: 13.5 dB typical
• High IIP3 and IP1dB
• Exceptional Cell/PCS-Band rejection
• Advanced GaAs E-pHEMT Technology
• Low external component count
• Wide Supply Voltage: 1 V to 3.6 V
• Shutdown current: < 0.1 μA
• CMOS compatible shutdown pin (SD) current @ 2.8 V: 0.1 mA
• Adjustable current via single external resistor/voltage
• Meets MSL3 and Lead-Free
• ESD-protected RF input: 3 kV HBM
• Small package dimension: 3.3(L)x2.1(W)x1.1(H) mm3
• High Gain: 13.5 dB typical
• High IIP3 and IP1dB
• Exceptional Cell/PCS-Band rejection
• Advanced GaAs E-pHEMT Technology
• Low external component count
• Wide Supply Voltage: 1 V to 3.6 V
• Shutdown current: < 0.1 μA
• CMOS compatible shutdown pin (SD) current @ 2.8 V: 0.1 mA
• Adjustable current via single external resistor/voltage
• Meets MSL3 and Lead-Free
• ESD-protected RF input: 3 kV HBM
• Small package dimension: 3.3(L)x2.1(W)x1.1(H) mm3
Application of ALM-1412-TR1G
• GPS Band LNA
