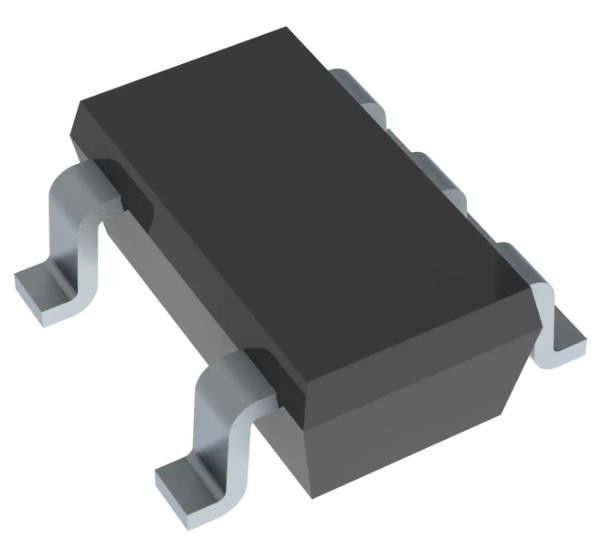

OPA170AIDBVR General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA170AIDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Output Type: | Rail-to-Rail |
|---|---|---|---|
| Slew Rate: | 0.4V/µs | Gain Bandwidth Product: | 1.2 MHz |
| Current - Input Bias: | 8 PA | Voltage - Input Offset: | 250 µV |
| Current - Supply: | 110µA | Current - Output / Channel: | 17 MA |
Product Description
OPA170AIDBVR General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Specifications of OPA170AIDBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.4V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 8 pA |
| Voltage - Input Offset | 250 µV |
| Current - Supply | 110µA |
| Current - Output / Channel | 17 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | OPA170 |
Features of OPA170AIDBVR
• Supply Range: 2.7 V to 36 V, ±1.35 V to ±18 V
• Low Noise: 19 nV/√Hz
• RFI Filtered Inputs
• Input Range Includes the Negative Supply
• Input Range Operates to Positive Supply
• Rail-to-Rail Output
• Gain Bandwidth: 1.2 MHz
• Low Quiescent Current: 110 µA per Amplifier
• High Common-Mode Rejection: 120 dB
• Low Bias Current: 15 pA (Maximum)
• Industry-Standard Packages and micro Packages Available
• Create a Custom Design Using the OPAx170 With the WEBENCH® Power Designer
Applications of OPA170AIDBVR
• Tracking Amplifier in Power Modules
• Merchant Power Supplies
• Transducer Amplifiers
• Bridge Amplifiers
• Temperature Measurements
• Strain Gauge Amplifiers
• Precision Integrators
• Battery-Powered Instruments
• Test Equipment
