LM137K Linear Integrated Circuits Linear Regulator Chip 1 Output 1.5A TO3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD842KQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 40V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | -1.2V | Voltage - Output (Max): | -37V |
| Current - Output: | 1.5A | PSRR: | 77dB ~ 60dB (120Hz) |
| Operating Temperature: | -55°C ~ 150°C | Supplier Device Package: | TO-3 |
| High Light: | LM137K Linear Integrated Circuits,LM137K Linear Regulator Chip,1.5A TO3 Linear Integrated Circuits |
||
Product Description

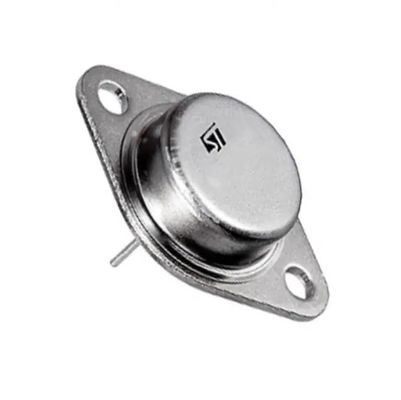

LM137K Linear IC Chips Linear Voltage Regulator 1 Output 1.5A TO-3
Linear Voltage Regulator IC Negative Adjustable 1 Output 1.5A TO-3
Specifications of LM137K
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Bulk |
| Product Status | Obsolete |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Voltage - Output (Max) | -37V |
| Voltage Dropout (Max) | - |
| Current - Output | 1.5A |
| PSRR | 77dB ~ 60dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-3 |
| Base Product Number | LM137 |
Features of LM137K
■ Output voltage adjustable down to VREF
■ 1.5 A guaranteed output current
■ 0.3%/V typical load regulation
■ 0.01%/V typical line regulation
■ Current limit constant with temperature
■ Ripple rejection: 77 dB
■ Standard 3-lead transistor packages
■ Excellent thermal regulation: 0.002%/V
■ 50 ppm/°C temperature coefficient
Descriptions of LM137K
The LM137 series are adjustable 3-terminal negative voltage regulators capable of supplying
in excess -1.5 A over a -1.2 to -37 V output voltage range. They are exceptionally easy to use
and require only two external resistors to set the output voltage. Further, both line and load
regulation are better than standard fixed regulators. Also, LM137 regulators are supplied in
standard transistor packages which are easily mounted and handled. In addition to higher
performance than fixed regulators, the LM137 series offer full overload protection available only
in integrated circuits. Included on the chip are current limit, thermal overload protection and safe
area protection. All overload protection circuitry remains fully functional even if the adjustment
terminal is disconnected.
Environmental & Export Classifications of LM137K
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
