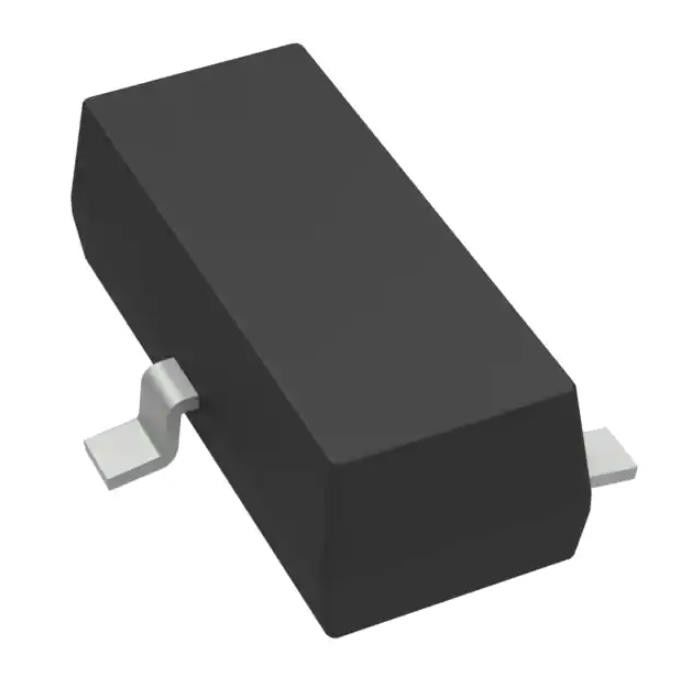

Sot23-3 Linear Integrated Circuits 3.3v 100ma LM3480IM3-3.3 NOPB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3480IM3-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage Dropout (Max): | 1.2V @ 100mA | Current - Output: | 100mA |
|---|---|---|---|
| Current - Quiescent (Iq): | 2 MA | Protection Features: | Over Current, Over Temperature |
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 | Supplier Device Package: | SOT-23-3 |
| High Light: | LM3480IM3-3.3 NOPB,Sot23-3 Linear Integrated Circuits,3.3v 100ma Linear Integrated Circuits |
||
Product Description
LM3480IM3-3.3/NOPB General Purpose Relays Ic Reg Linear 3.3v 100ma Sot23-3
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
Specifications of LM3480IM3-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 2 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | LM3480 |
Features of LM3480IM3-3.3/NOPB
• Input Voltage Range: up to 30 V
• 3.3-V, 5-V, 12-V, and 15-V Versions Available
• Packaged in the Tiny 3-Lead SOT-23 Package
• 30-V Maximum Input for Operation
• 1.2-V Ensured Maximum Dropout Over Full Load and Temperature Ranges
• 100-mA Ensured Minimum Load Current
• ±5% Ensured Output Voltage Tolerance Over Full Load and Temperature Ranges
• −40 to +125°C Junction Temperature Range for Operation
Applications of LM3480IM3-3.3/NOPB
• Tiny Alternative to LM78Lxx Series and Similar Devices
• Tiny 5-V ±5% to 3.3-V, 100-mA Converter
• Post Regulator for Switching DC/DC Converter
• Bias Supply for Analog Circuits
Environmental & Export Classifications of LM3480IM3-3.3/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
