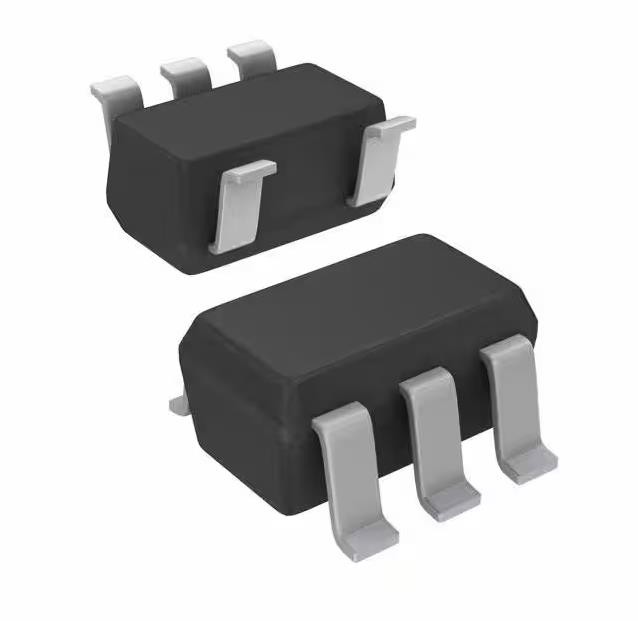

3V 200MA SOT 235 IC Reg Linear Regulator Circuit TPS7A0330PDBVR
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A0330PDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Fixed | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 6V | Voltage - Output (Min/Fixed): | 3V |
| Voltage Dropout (Max): | 0.36V @ 200mA | Current - Output: | 200mA |
| High Light: | 3V 200MA SOT 235 IC Reg Linear,SOT235 IC Reg Linear Regulator Circuit,3V 200MA TPS7A0330PDBVR |
||
Product Description
TPS7A0330PDBVR Transistor Ic Chip Ic Reg Linear 3v 200ma Sot23-5
TPS7A0330PDBVR Regulator Ic Chip Ic Reg Linear 3v 200ma Sot23-5
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-5
Specifications of TPS7A0330PDBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.36V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 300 nA |
| PSRR | 55dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS7A0330 |
Features of TPS7A0330PDBVR
• Ultra-low IQ: 200 nA (typ),even in dropout
• Shutdown IQ: 3 nA (typ)
• Excellent transient response (1 mA to 50 mA)
– < 10-µs settling time
– 80-mV undershoot
• Packages:
– 1.0-mm × 1.0-mm X2SON
– SOT23-5
– 0.64-mm × 0.64-mm DSBGA
• Input voltage range: 1.5 V to 6.0 V
• Output voltage range: 0.8 Vto 5.0 V (fixed)
• Output accuracy: 1.5% over temperature
• Smart enable pulldown
• Very low dropout:
– 270 mV (max) at 200 mA (VOUT = 3.3 V)
• Stable with a 1-µF or larger capacitor
Applications of TPS7A0330PDBVR
• Wearables electronics
• Thermostats, smoke and heatdetectors
• Gas, heat, and water meters
• Blood glucose monitors and pulse oximeters
• Residential circuit breakers and fault indicators
• Building security and videosurveillance devices
• EPOS card readers
Environmental & Export Classifications of TPS7A0330PDBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
