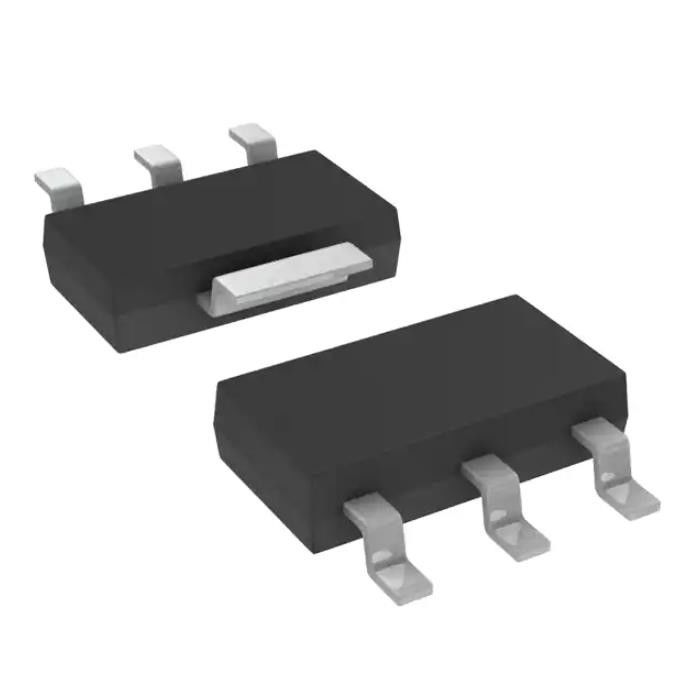

3.3V 1A SOT223 Linear Integrated Circuits LD1117AS33TR IC Reg Linear
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LD1117AS33TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Fixed | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 15V | Voltage - Output (Min/Fixed): | 3.3V |
| Voltage Dropout (Max): | 1.3V @ 1A | Current - Output: | 1A |
| High Light: | SOT223 Linear Integrated Circuits,3.3V 1A Linear Integrated Circuits,LD1117AS33TR IC Reg Linear |
||
Product Description
LD1117AS33TR General Purpose Relays Ic Reg Linear 3.3v 1a Sot223
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
Specifications of LD1117AS33TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| Base Product Number | LD1117 |
Features of LD1117AS33TR
• Low dropout voltage:
– 1.15 V typ. @ IOUT = 1 A, 25 °C
• Very low quiescent current:
– 5 mA typ. @ 25 °C
• Output current up to 1 A
• Fixed output voltage of:
– 1.2 V, 1.8 V, 3.3 V
• Adjustable version availability (VREF = 1.25 V)
• Internal current and thermal limit
• Only 10 µF for stability
application of LD1117AS33TR
The LD1117A adjustable has a thermal stabilized 1.25 ± 0.012 V reference voltage between the OUT and ADJ pins. IADJ is 60 µA typ. (120 µA max.) and ΔIADJ is 1 µA typ. (5 µA max.). R1 is normally fixed to 120 Ω. From Figure 6 the following is obtained: VOUT = VREF + R2 (IADJ + IR1) = VREF + R2 (IADJ +VREF /R1) = VREF (1 + R2 / R1) + R2 x IADJ. In normal applications the R2 value is in the range of a few kΩ, so the R2 x IADJ product can not be considered in the VOUT calculation; the above expression then becomes: VOUT = VREF (1 + R2 / R1). In order to have a better load regulation it is important to realize a good Kelvin connection of R1 and R2 resistors. In particular, the R1 connection must be realized very close to the OUT and ADJ pins, while the R2 ground connection must be placed as near as possible to the negative load pin. Ripple rejection can be improved by introducing a 10 µF electrolytic capacitor placed in parallel to the R2 resistor (see Figure 8).
Environmental & Export Classifications of LD1117AS33TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Want to Know more details about this product
