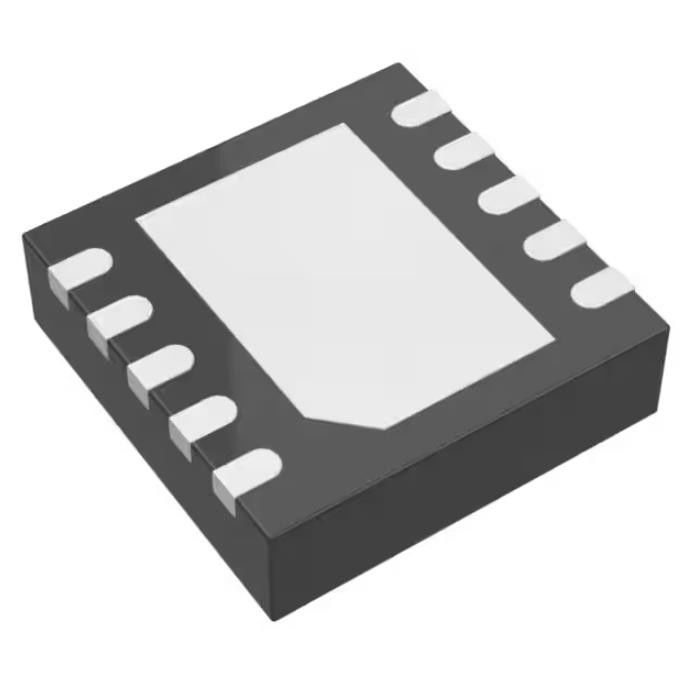

10DFN Linear Integrated Circuits LTC4413EDDPBF TVS DIODE SMD IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC4413EDDPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Type: | Source Selector Switch | FET Type: | P-Channel |
| Ratio - Input:Output: | 2:01 | Internal Switch(s): | Yes |
| Delay Time - ON: | 50 µs | Delay Time - OFF: | 4 µs |
| High Light: | 10DFN Linear Integrated Circuits,TVS DIODE Linear Integrated Circuits,LTC4413EDDPBF |
||
Product Description
LTC4413EDDPBF Tvs Diode Smd Ic Or Ctrlr Src Select 10dfn 505-Ltc4413edd#Pbf-Nd
OR Controller Source Selector Switch P-Channel 2:1 10-DFN (3x3)
Specifications of LTC4413EDDPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| OR Controllers, Ideal Diodes | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Type | Source Selector Switch |
| FET Type | P-Channel |
| Ratio - Input:Output | 2:01 |
| Internal Switch(s) | Yes |
| Delay Time - ON | 50 µs |
| Delay Time - OFF | 4 µs |
| Current - Output (Max) | 2.6A |
| Current - Supply | 25 µA |
| Voltage - Supply | 2.5V ~ 5.5V |
| Applications | Handheld/Mobile Devices |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Base Product Number | LTC4413 |
FEATURES of LTC4413EDDPBF
• 2-Channel Ideal Diode ORing or Load Sharing
• Low Loss Replacement for ORing Diodes
• Low Forward On-Resistance (100mΩ Max at 3.6V)
• Low Reverse Leakage Current (1µA Max)
• Small Regulated Forward Voltage (28mV Typ)
• 2.5V to 5.5V Operating Range
• 2.6A Maximum Forward Current
• Internal Current Limit and Thermal Protection
• Slow Turn-On/Off to Protect Against Inductive Source Impedance-Induced Voltage Spiking
• Ultralow Quiescent Current Consumption, Low Power Alternative to the LTC4413-1
• Status Output to Indicate if Selected Channel is Conducting
• Programmable Channel On/Off
• Low Profile (0.75mm) 10-Lead 3mm × 3mm DFN Package
Applications of LTC4413EDDPBF
• Battery and Wall Adapter Diode ORing in Handheld Products
• Backup Battery Diode ORing
• Power Switching
• USB Peripherals
• Uninterruptable Supplies
Environmental & Export Classifications of LTC4413EDDPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
