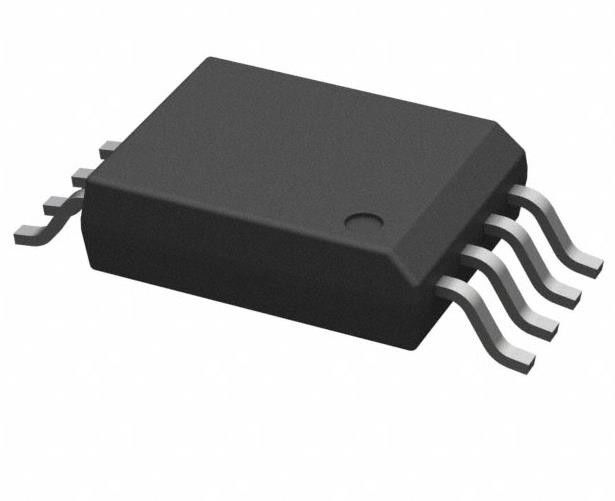

UCC5310MCDWVR 4.3A Gate Driver Capacitive Coupling 3000Vrms 1 Channel 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UCC5310MCDWVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 3000Vrms |
|---|---|---|---|
| Common Mode Transient Immunity (Min): | 100kV/µs | Propagation Delay TpLH / TpHL (Max): | 75ns, 75ns |
| Pulse Width Distortion (Max): | 20ns | Rise / Fall Time (Typ): | 12ns, 10ns |
| Current - Output High, Low: | 2.4A, 1.1A | Current - Peak Output: | 4.3A |
| High Light: | 3000Vrms UCC5310MCDWVR Gate Driver,8-SOIC UCC5310MCDWVR Gate Driver,4.3A UCC5310MCDWVR Gate Driver |
||
Product Description
SN74LVC1G08DCKR AND Gate IC 1 Channel SC-70-5 1.65V ~ 5.5V 32mA, 32mA
Specifications of UCC5310MCDWVR
| TYPE | DESCRIPTION |
| Category | Isolators |
| Isolators - Gate Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Pulse Width Distortion (Max) | 20ns |
| Rise / Fall Time (Typ) | 12ns, 10ns |
| Current - Output High, Low | 2.4A, 1.1A |
| Current - Peak Output | 4.3A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 13.2V ~ 33V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| Approval Agency | CQC, UR, VDE |
| Base Product Number | UCC5310 |
Features of UCC5310MCDWVR
• Feature Options
– Split Outputs (UCC53x0S)
– UVLO Referenced to GND2 (UCC53x0E)
– Miller Clamp Option (UCC53x0M)
• 8-pin D (4-mm Creepage) and DWV (8.5mm Creepage) Package
• 60-ns (Typical) Propagation Delay
• 100-kV/μs Minimum CMTI
• Isolation Barrier Life > 40 Years
• 3-V to 15-V Input Supply Voltage
• Up to 33-V Driver Supply Voltage – 8-V and 12-V UVLO Options
• Negative 5-V Handling Capability on Input Pins
• Safety-Related Certifications: – 7000-VPK Isolation DWV (Planned) and 4242-VPK Isolation D per DIN V VDE V 0884-11:2017-01 and DIN EN 61010-1
– 5000-VRMS DWV and 3000-VRMS D Isolation Rating for 1 minute per UL 1577
– CQC Certification per GB4943.1-2011 D and DWV (Planned)
• CMOS Inputs
• Operating Temperature: –40°C to +125°C
Introduction of UCC5310MCDWVR
• Motor Drives
• High Voltage DC-to-DC Converters
• UPS and PSU
• HEV and EV Power Modules
• Solar Inverters
