TPS7A7100RGWR Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A7100RGWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 6.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 0.9V | Voltage - Supply (Max): | 14V |
| Voltage - Output (Max): | 5V | Voltage Dropout (Max): | 0.35V @ 1A |
| Current - Output: | 1A | Current - Quiescent (Iq): | 4mA |
| High Light: | TPS7A7100RGWR,Positive Adjustable Linear Voltage Regulator IC,1 Output Linear Voltage Regulator IC |
||
Product Description
TPS7A7100RGWR Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 1A
Specifications of TPS7A7100RGWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.35V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 4 mA |
| PSRR | - |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

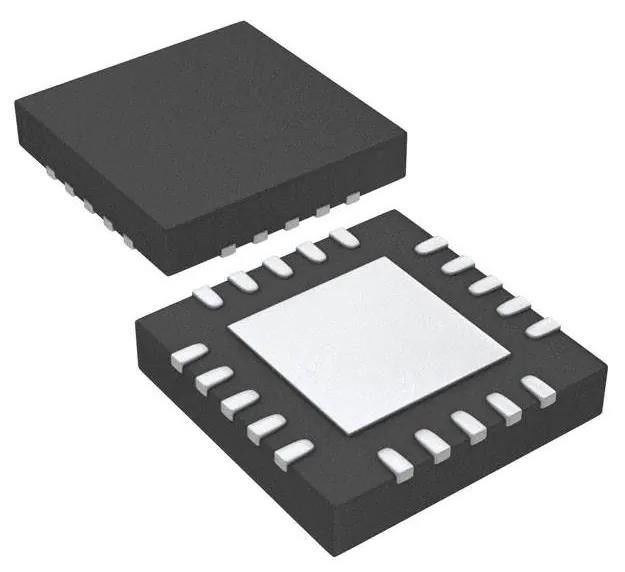

| Package / Case | 20-VQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (5x5) |
| Base Product Number | TPS7A7100 |
Features of TPS7A7100RGWR
* Low-Dropout Voltage: 140 mV at 1 A
* Vin Range: 1.5 V to 6.5 V
* Configurable Fixed Vou Range: 0.9 V to 3.5 V
* Adjustable VouT Range: 0.9 V to 5 V
* Very Good Load- and Line-Transient Response
* Stable With Ceramic Output Capacitor
* 1.5% Accuracy Overline, Overload, and Overtemperature
* Programmable Soft Start
* Power Good (PG) Output
* 3-mm x 3-mm QFN-16 and 5-mm x 5-mm QFN-20 Packages
Introduction of TPS7A7100RGWR
* Wireless Infrastructure: SerDes, FPGA DSPTM
* RF Components: VCO, ADC, DAC, LVDS
* Set-Top Boxes: Amplifier, ADC, DAC,FPGA, DSP
* Wireless LAN, Bluetooth@
* PCs and Printers
* Audio and Visua
