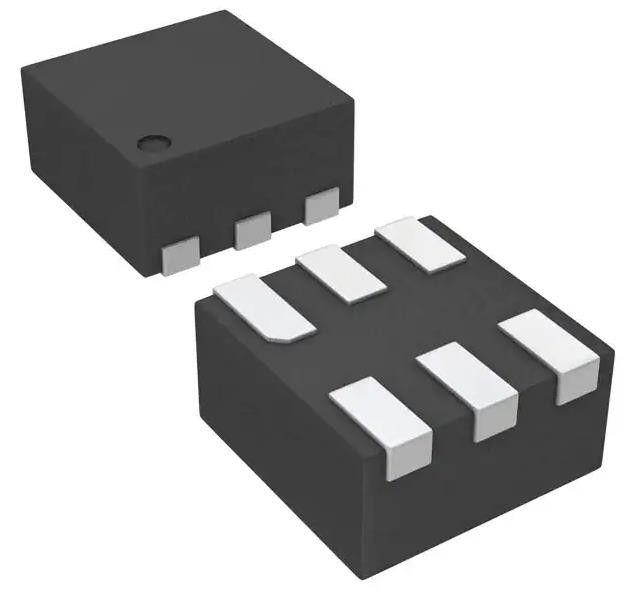

TPS71709QDSERQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 150mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS71709QDSERQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 6.5V | Voltage - Output (Min/Fixed): | 0.9V |
| Voltage Dropout (Max): | 0.3V @ 150mA | Current - Output: | 150mA |
| Current - Quiescent (Iq): | 80 µA | Current - Supply (Max): | 100 µA |
Product Description
TPS71709QDSERQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 150mA
Specifications of TPS71709QDSERQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.3V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 80 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 70dB ~ 45dB (100Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN |
| Supplier Device Package | 6-WSON (1.5x1.5) |
| Base Product Number | TPS717 |
Features of TPS71709QDSERQ1
• AEC-Q100 automotive qualified
• High bandwidth, 1 MHz analog output
• Differential Hall sensing rejects common-mode fields
• High-isolation SOIC16 wide body package provides galvanic isolation for high-voltage applications
• Integrated shield virtually eliminates capacitive coupling from current conductor to die, greatly suppressing output noise due to high dv/dt transients
• Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design
• UL60950-1 (ed. 2) certified
□ Dielectric Strength Voltage = 3.6 kVRMS
□ Basic Isolation Working Voltage = 616 VRMS
• Fast and externally configurable overcurrent fault detection
• 1 mΩ primary conductor resistance for low power loss and high inrush current withstand capability
• Options for 3.3 V and 5 V single supply operation
• Output voltage proportional to AC and DC current
• Factory-trimmed sensitivity and quiescent output voltage for improved accuracy
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage
Application of TPS71709QDSERQ1
The ACS732 and ACS733 are a new generation of high bandwidth current sensor ICs from Allegro™. These devices provide a compact, fast, and accurate solution for measuring high-frequency currents in DC/DC converters and other switching power applications. The ACS732 and ACS733 offer high isolation, high bandwidth Hall-effect-based current sensing with user-configurable overcurrent fault detection.
These features make them ideally suited for high-frequency transformer and current transformer replacement in applications running at high voltages.
Environmental & Export Classifications of TPS71709QDSERQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
