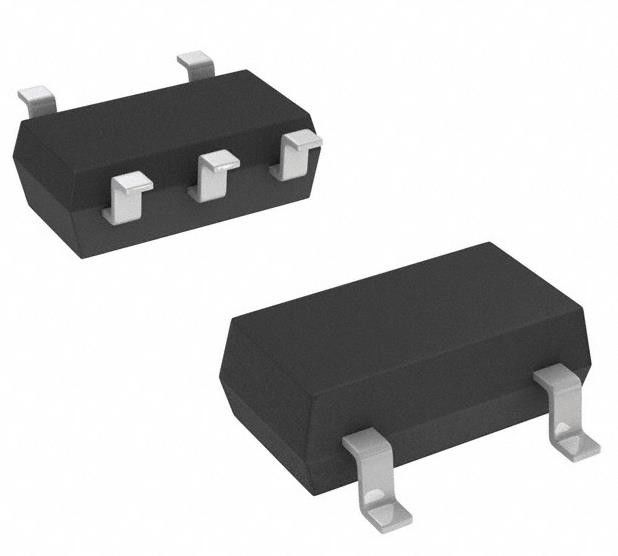

RT9198-4GGBR Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5R
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RT9198-4GGBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 4.75V |
| Voltage Dropout (Max): | 0.33V @ 300mA | Current - Output: | 300mA |
| Current - Quiescent (Iq): | 130 µA | PSRR: | 60dB ~ 30dB (100Hz ~ 10kHz) |
| High Light: | RT9198-4GGBR Linear Voltage Regulator IC,RT9198-4GGBR,SOT-23-5R Voltage Regulator IC |
||
Product Description
RT9198-4GGBR Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5R
Specifications of RT9198-4GGBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Richtek USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 4.75V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.33V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 130 µA |
| PSRR | 60dB ~ 30dB (100Hz ~ 10kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5R |
| Base Product Number | RT9198 |
Features of RT9198-4GGBR
* Low-Noise for RF Application
* Fast Response in Line/Load Transient
* Quick Start-Up (Typically 50μs)
* < 0.01μA Standby Current When Shutdown
* Low Dropout : 220mV @ 300mA
* Wide Operating Voltage Ranges : 2.5V to 5.5V
* TTL-Logic-Controlled Shutdown Input
* Low Temperature Coefficient
* Current Limiting Protection
* Thermal Shutdown Protection
* Only 1μF Output Capacitor Required for Stability
* High Power Supply Rejection Ratio
* Custom Voltage Available
* RoHS Compliant and 100% Lead (Pb)-Free
Applications of RT9198-4GGBR
* CDMA/GSM Cellular Handsets
* Battery-Powered Equipment
* Laptop, Palmtops, Notebook Computers
* Hand-Held Instruments
* PCMCIA Cards
* Portable Information Appliances
Environmental & Export Classifications of RT9198-4GGBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
