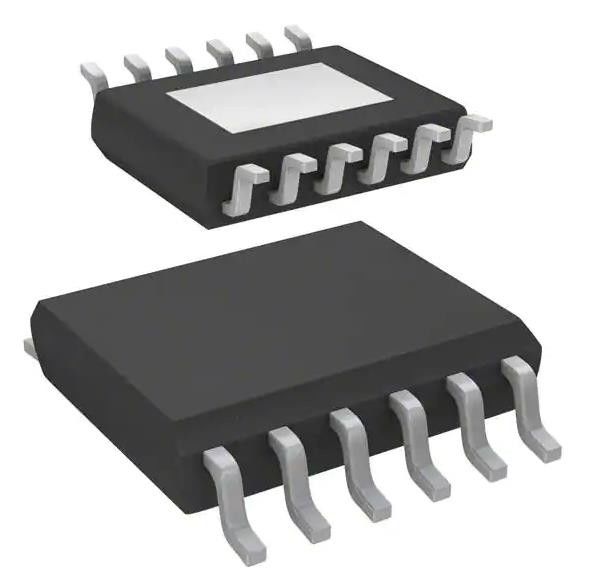

L4995AJTR Linear Voltage Regulator IC Positive Fixed 1 Output 500mA PowerSSO-12
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | L4995AJTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 31V | Voltage - Output (Min/Fixed): | 5V |
| Voltage Dropout (Max): | 0.5V @ 400mA | Current - Output: | 500mA |
| Current - Quiescent (Iq): | 160 µA | PSRR: | 55dB (100Hz) |
Product Description
L4995AJTR Linear Voltage Regulator IC Positive Fixed 1 Output 500mA PowerSSO-12
Specifications of L4995AJTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 31V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 400mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 160 µA |
| Current - Supply (Max) | 2.7 mA |
| PSRR | 55dB (100Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | PowerSSO-12 |
| Supplier Device Package | PowerSSO-12 |
| Base Product Number | L4995 |
Features of L4995AJTR
* AEC-Q100 qualified
* Operating DC supply voltage range 5.6 V to 31 V
* Low dropout voltage
* Low quiescent current consumption
* Reset circuit sensing of output voltage down to 1 V
* Programmable reset pulse delay with external capacitor
* Programmable watchdog timer with external capacitor
* Thermal shutdown and short circuit protection
Descriptions of L4995AJTR
L4995 is a family of monolithic integrated 5 V voltage regulators with a low drop voltage at currents of up to 500 mA, available in both 12 and 24 pin packages.
Environmental & Export Classifications of L4995AJTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
