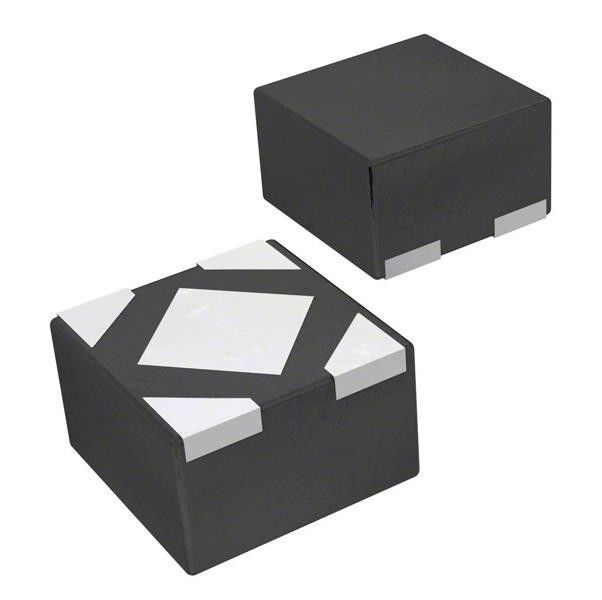

NCP103AMX330TCG Linear Voltage Regulator IC Positive Fixed 1 Output 150mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCP103AMX330TCG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 3.3V |
| Voltage Dropout (Max): | 0.11V @ 150mA | Current - Output: | 150mA |
| Current - Quiescent (Iq): | 95 µA | PSRR: | 75dB (1kHz) |
Product Description
NCP103AMX330TCG Linear Voltage Regulator IC Positive Fixed 1 Output 150mA
Specifications of NCP103AMX330TCG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.11V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 95 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-UDFN (1.0x1.0) |
| Base Product Number | NCP103 |
Features of NCP103AMX330TCG
• Operating Input Voltage Range: 1.7 V to 5.5 V
• Available in Fixed Voltage Options: 0.9 V to 3.5 V Contact Factory for Other Voltage Options
• Very Low Quiescent Current of Typ. 50 A
• Standby Current Consumption: Typ. 0.1 A
• Low Dropout: 75 mV Typical at 150 mA
• ±1% Accuracy at Room Temperature
• High Power Supply Ripple Rejection: 75 dB at 1 kHz
• Thermal Shutdown and Current Limit Protections
• Stable with a 1 F Ceramic Output Capacitor
• Available in uDFN 1.0 x 1.0 mm Package
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of NCP103AMX330TCG
• PDAs, Mobile phones, GPS, Smartphones
• Wireless Handsets, Wireless LAN, Bluetooth®, Zigbee®
• Portable Medical Equipment
• Other Battery Powered Applications
Environmental & Export Classifications of NCP103AMX330TCG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
