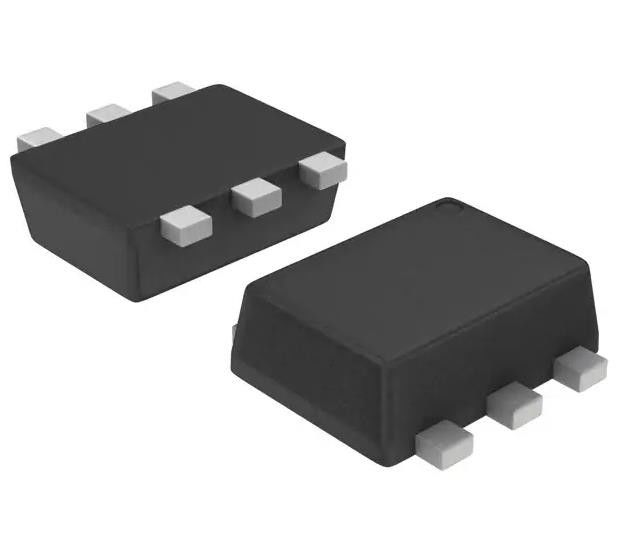

NCP170AXV280T2G Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-563
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCP170AXV280T2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 2.8V |
| Voltage Dropout (Max): | 0.3V @ 150mA | Current - Output: | 150mA |
| Current - Quiescent (Iq): | 900 NA | PSRR: | 40dB (1kHz) |
Product Description
NCP170AXV280T2G Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-563
Specifications of NCP170AXV280T2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.3V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 900 nA |
| PSRR | 40dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
| Base Product Number | NCP170 |
Features of NCP170AXV280T2G
• Operating Input Voltage Range: 2.2 V to 5.5 V
• Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
• Ultra-Low Quiescent Current Typ. 0.5 A
• Low Dropout: 170 mV Typ. at 150 mA
• High Output Voltage Accuracy ±1%
• Stable with Ceramic Capacitors 1 F
• Over-Current Protection
• Thermal Shutdown Protection
• NCP170A for Active Discharge Option
• Available in Small 1 × 1 mm XDFN4, SOT−563 and TSOP-5 Packages
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of NCP170AXV280T2G
• Battery Powered Equipments
• Portable Communication Equipments
• Cameras, Image Sensors and Camcorders
Environmental & Export Classifications of NCP170AXV280T2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
