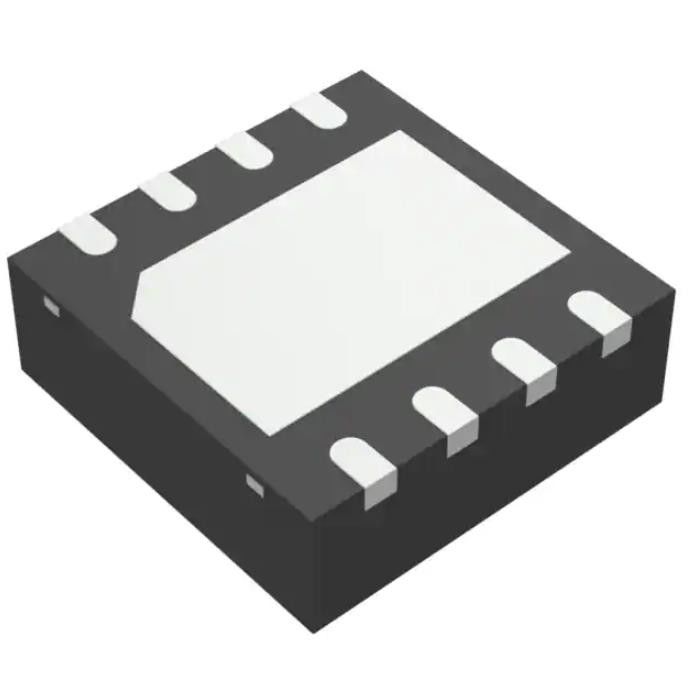

300mV Transceiver IC EMMC Memory Chip 8VDFN TJA1057GTK 3Z
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TJA1057GTK/3Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Receiver Hysteresis: | 300 MV | Duplex: | Half |
|---|---|---|---|
| Voltage - Supply: | 4.75V ~ 5.25V | Operating Temperature: | -40°C ~ 150°C |
| Mounting Type: | Surface Mount | Package / Case: | 8-VDFN Exposed Pad |
| Supplier Device Package: | 8-HVSON (3x3) | Base Product Number: | TJA1057 |
| High Light: | TJA1057GTK 3Z,300mV Transceiver IC,8VDFN Transceiver IC |
||
Product Description
TJA1057GTK/3Z Emmc Memory Chip Ic Transceiver Half 1/1 8hvson
1/1 Transceiver Half CANbus 8-HVSON (3x3)
Specifications of TJA1057GTK/3Z
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | NXP USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1月1日 |
| Duplex | Half |
| Receiver Hysteresis | 300 mV |
| Data Rate | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-HVSON (3x3) |
| Base Product Number | TJA1057 |
Features of TJA1057GTK/3Z
• Fully ISO 11898-2:2016, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant
• Optimized for use in 12 V automotive systems
• High ESD handling capability on the bus pins (8 kV IEC and HBM)
• Bus pins protected against transients in automotive environments
• AEC-Q100 qualified
• Dark green product (halogen free and Restriction of Hazardous Substances (RoHS) compliant)
• Shorter propagation delay on the TJA1057B and TJA1057C variants supports larger network topologies (see Table 8)
Applications of TJA1057GTK/3Z
• Functional behavior predictable under all supply conditions
• Transceiver disengages from the bus (high-ohmic) when the supply voltage drops below the undervoltage threshold
• Transmit Data (TXD) dominant time-out function
• Internal biasing of TXD and S input pins
Environmental & Export Classifications of TJA1057GTK/3Z
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
