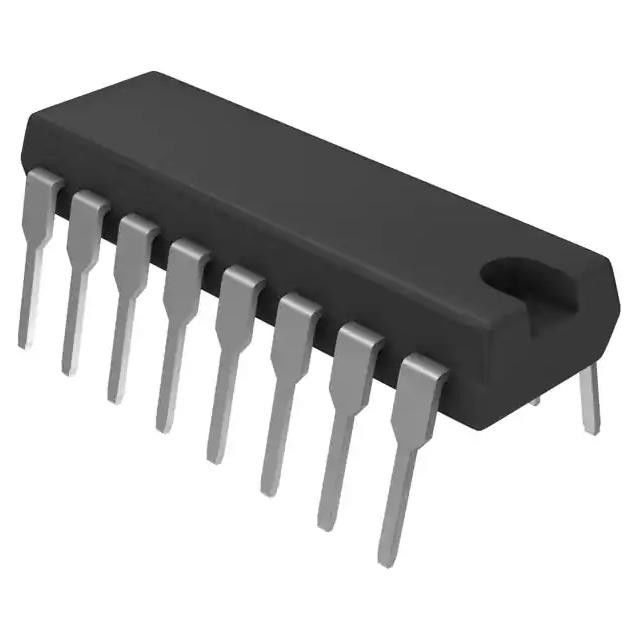

RS422 RS485 Analog Front End IC EMMC Memory Chip 16PDIP AM26LS31CN
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | AM26LS31CN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | AM26LS31CN | Type: | Driver |
|---|---|---|---|
| Number Of Drivers/Receivers: | 4/0 | Voltage - Supply: | 4.75V ~ 5.25V |
| Operating Temperature: | 0°C ~ 70°C | Supplier Device Package: | 16-PDIP |
| High Light: | RS485 Analog Front End IC,RS422 Analog Front End IC,16PDIP AM26LS31CN |
||
Product Description
AM26LS31CN EMMC Memory Chip 4/0 Driver RS422, RS485 16-PDIP 0°C ~ 70°C
IC AFE 3 CHAN 24BIT 28WQFN 3 Channel AFE 24 Bit 28-WQFN (5x5)
The AM26LS31 family of devices is a quadruple complementary-output line driver designed to meet
the requirements of ANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. The 3-state
outputs have high-current capability for driving balanced lines such as twisted-pair or parallel-wire
transmission lines, and they are in the highimpedance state in the power-off condition. The enable function
is common to all four drivers and offers the choice of an active-high or active-low
enable (G, G) input. Low-power Schottky circuitry reduces power consumption without sacrificing speed.
Features of AM26LS31CN
• Meets or Exceeds the Requirements of ANSI
TIA/EIA-422-B and ITU
• Operates From a Single 5-V Supply
• TTL-Compatible
• Complementary Outputs
• High Output Impedance in Power-Off Conditions
• Complementary Output-Enable Inputs
• Available MIL-PRF-38535-Qualified Options (M):
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing
of All Parameters.
Specifications of AM26LS31CN
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
AM26LS31CN
|
|
Type
|
Driver
|
|
Protocol
|
RS422, RS485
|
|
Number of Drivers/Receivers
|
4/0
|
|
Duplex
|
-
|
|
Data Rate
|
-
|
|
Voltage - Supply
|
4.75V ~ 5.25V
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
16-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
16-PDIP
|
|
Base Product Number
|
AM26LS31
|
Applications of AM26LS31CN
• Motor Encoders
• Field Transmitters: Pressure Sensors and Temperature Sensors
• Military and Avionics Imaging
• Temperature Sensors or Controllers Using Modbus
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
