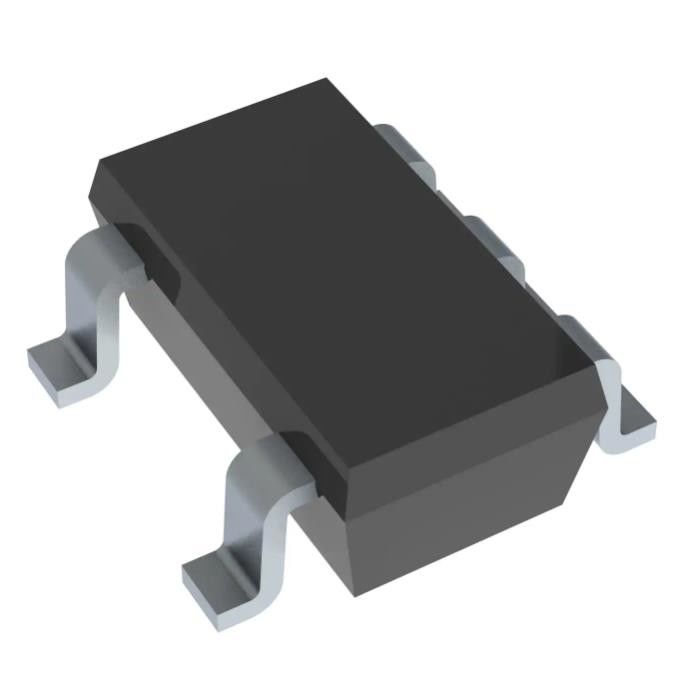

TLVH431AQDBVRQ1 SOT23-5 Shunt Voltage Reference IC VREF SHUNT
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLVH431AQDBVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Reference Type: | Shunt |
|---|---|---|---|
| Output Type: | Adjustable | Voltage - Output (Min/Fixed): | 1.24V |
| Voltage - Output (Max): | 18 V | Current - Output: | 70 MA |
| Tolerance: | ±1% | Current - Cathode: | 100 µA |
| High Light: | TLVH431AQDBVRQ1,SOT23-5 Shunt Voltage Reference IC,Shunt Voltage Reference IC |
||
Product Description
TLVH431AQDBVRQ1 Emmc Memory Chip Ic Vref Shunt Adj 1% Sot23-5
Shunt Voltage Reference IC Adjustable 1.24V 18 VV ±1% 70 mA SOT-23-5
Specifications of TLVH431AQDBVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 18 V |
| Current - Output | 70 mA |
| Tolerance | ±1% |
| Current - Cathode | 100 µA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TLVH431 |
Features of TLVH431AQDBVRQ1
• Qualified for Automotive Applications
• Low-Voltage Operation: Down to 1.24 V
• Reference Voltage Tolerances at 25°C
– 0.5% for B Grade
– 1% for A Grade
• Adjustable Output Voltage, VO = VREF to 18 V
• Wide Operating Cathode Current Range:
100 μA to 70 mA
• 0.25-Ω Typical Output Impedance
• –40°C to 125°C Specifications
Applications of TLVH431AQDBVRQ1
The TLVH431 devices are low-voltage 3-terminal adjustable voltage references, with thermal stabilityspecified over the automotive temperature range. Output voltage can be set to any value between V REF (1.24 V) and 18 V with two external resistors (see Figure 2). These devices operate from a lower voltage (1.24 V) than the widely used TL431 and TL1431 shunt-regulator references.
