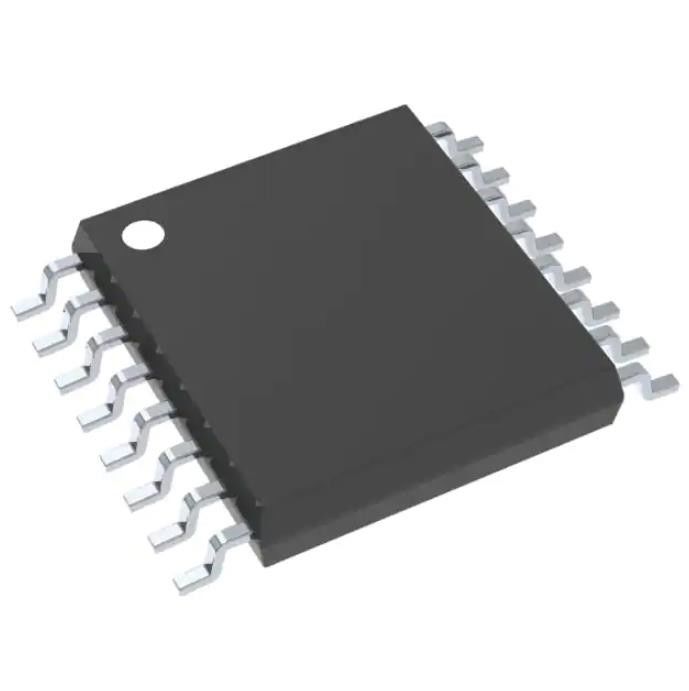

TLV2375IPWR OPAMP GP 4 CIRCUIT 16TSSOP 296-11970-1-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV2375IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Amplifier Type: | General Purpose |
|---|---|---|---|
| Number Of Circuits: | 4 | Output Type: | Rail-to-Rail |
| Slew Rate: | 2.1V/µs | Gain Bandwidth Product: | 3 MHz |
| Current - Input Bias: | 1 PA | Voltage - Input Offset: | 2 MV |
| High Light: | TLV2375IPWR,OPAMP GP 4 CIRCUIT 16TSSOP,296-11970-1-ND |
||
Product Description
TLV2375IPWR Emmc Memory Chip Ic Opamp Gp 4 Circuit 16tssop 296-11970-1-Nd
General Purpose Amplifier 4 Circuit Rail-to-Rail 16-TSSOP
Specifications of TLV2375IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 2.1V/µs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 750µA (x4 Channels) |
| Current - Output / Channel | 16 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | TLV2375 |
Features of TLV2375IPWR
• Rail-to-Rail Input and Output
• Wide Bandwidth: 3 MHz
• High Slew Rate: 2.4 V/μs
• Supply Voltage Range: 2.7 V to 16 V
• Supply Current: 550 μA/Channel
• Low-Power Shutdown Mode
– IDD(SHDN): 25 μA/Channel
• Input Noise Voltage: 39 nV/√Hz
• Input Bias Current: 1 pA
• Specified Temperature Range:
– −40°C to +125°C (Industrial Grade)
• Ultra-Small Packaging:
– 5- or 6-Pin SOT-23 (TLV2370, TLV2371)
– 8- or 10-Pin MSOP (TLV2372, TLV2373)
Applications of TLV2375IPWR
• White Goods
• Handheld Test Equipment
• Portable Blood Glucose Systems
• Remote Sensing
• Active Filters
• Industrial Automation
• Battery-Powered Electronics
Environmental & Export Classifications of TLV2375IPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
