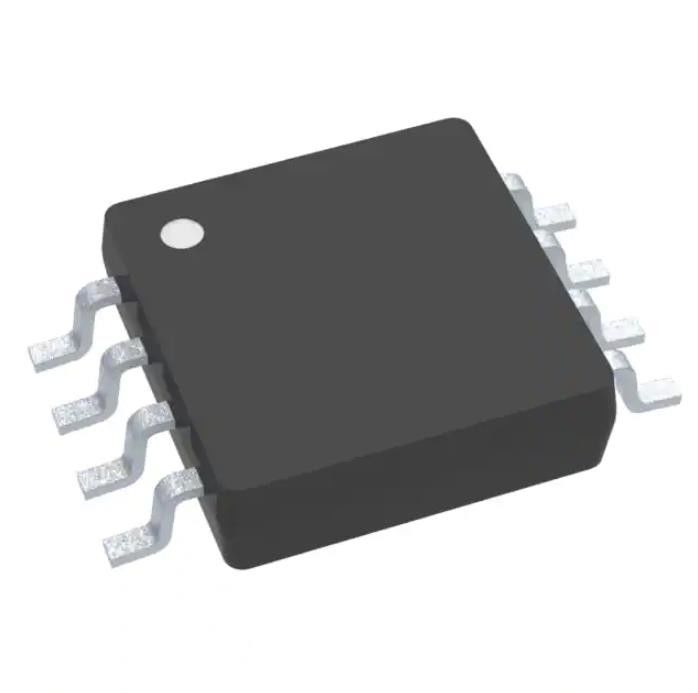

TLV9152QDGKRQ1 EMMC Memory Chip OPAMP GP 2 CIRCUIT 8VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV9152QDGKRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Amplifier Type: | General Purpose |
|---|---|---|---|
| Number Of Circuits: | 2 | Output Type: | Rail-to-Rail |
| Slew Rate: | 20V/µs | Gain Bandwidth Product: | 4.5 MHz |
| Current - Input Bias: | 10 PA | Voltage - Input Offset: | 125 µV |
| High Light: | TLV9152QDGKRQ1,OPAMP GP 2 CIRCUIT 8VSSOP,8VSSOP EMMC Memory Chip |
||
Product Description
TLV9152QDGKRQ1 Emmc Memory Chip Ic Opamp Gp 2 Circuit 8vssop
General Purpose Amplifier 2 Circuit Rail-to-Rail 8-VSSOP
Specifications of TLV9152QDGKRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 20V/µs |
| Gain Bandwidth Product | 4.5 MHz |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset | 125 µV |
| Current - Supply | 560µA (x2 Channels) |
| Current - Output / Channel | 75 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
Features of TLV9152QDGKRQ1
• AEC-Q100 qualified for automotive applications
– Temperature grade 1: –40°C to +125°C, TA
– Device HBM ESD classification level 3A
– Device CDM ESD classification level C6
• Low offset voltage: ±125 µV
• Low offset voltage drift: ±0.3 µV/°C
• Low noise: 10.8 nV/√Hz at 1 kHz
• High common-mode rejection: 120 dB
• Low bias current: ±10 pA
• Rail-to-rail input and output
• Wide bandwidth: 4.5-MHz GBW
• High slew rate: 21 V/µs
• Low quiescent current: 560 µA per amplifier
• Wide supply: ±1.35 V to ±8 V, 2.7 V to 16 V
• Robust EMIRR performance: EMI/RFI filters oninput pins
Applications of TLV9152QDGKRQ1
• Optimized for AEC-Q100 grade 1 applications
• Infotainment and cluster
• Passive safety
• Body electronics and lighting
• HEV/EV inverter and motor control
• On-board (OBC) and wireless charger
• Powertrain current sensor
• Advanced driver assistance systems (ADAS)
• High-side and low-side current sensing
Environmental & Export Classifications of TLV9152QDGKRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | Not applicable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
