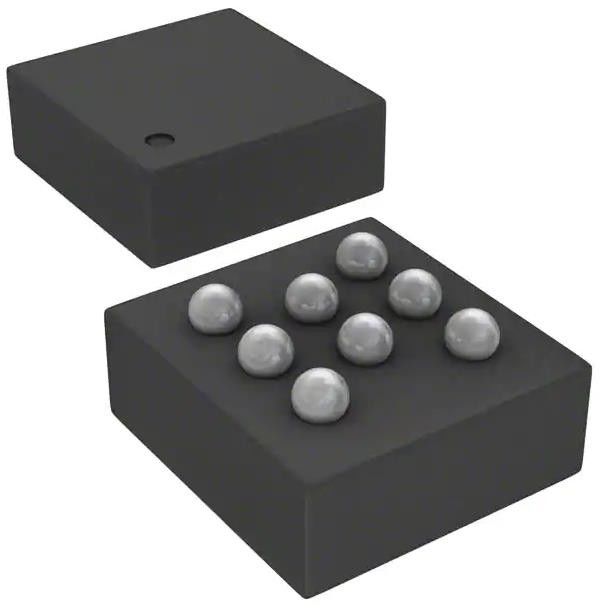

M95M01-DFCS6TP/K EEPROM Memory IC 1Mbit SPI 16 MHz 8-WLCSP 128K x 8
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M95M01-DFCS6TP/K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | EEPROM |
|---|---|---|---|
| Technology: | EEPROM | Memory Size: | 1Mbit |
| Memory Organization: | 128K X 8 | Memory Interface: | SPI |
| Clock Frequency: | 16 MHz | Write Cycle Time - Word, Page: | 5ms |
Product Description
M95M01-DFCS6TP/K EEPROM Memory IC 1Mbit SPI 16 MHz 8-WLCSP 128K x 8
Specifications of M95M01-DFCS6TP/K
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 1Mbit |
| Memory Organization | 128K x 8 |
| Memory Interface | SPI |
| Clock Frequency | 16 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Voltage - Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFBGA, WLCSP |
| Supplier Device Package | 8-WLCSP |
| Base Product Number | M95M01 |
Features of M95M01-DFCS6TP/K
• Compatible with the Serial Peripheral Interface (SPI) bus
• Memory array
– 1 Mbit (128 Kbytes) of EEPROM
– Page size: 256 bytes
• Write
– Byte Write within 5 ms
– Page Write within 5 ms
• Additional Write lockable page (Identification Page)
• Write Protect: quarter, half or whole memory array
• High-speed clock: 16 MHz
• Single supply voltage:
– 1.8 V to 5.5 V for M95M01-R
– 1.7 V to 5.5 V for M95M01-DF
• Operating temperature range: from -40 °C up to +85 °C
• Enhanced ESD protection
• More than 4 million Write cycles
• More than 200-year data retention
• Packages:
– SO8 (ECOPACK2®)
– TSSOP8 (ECOPACK2®)
– WLCSP (ECOPACK2®)
– Unsawn wafer (each die is tested)
Applications of M95M01-DFCS6TP/K
The M95M01 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 131072 x 8 bits, accessed through the SPI bus.
Environmental & Export Classifications of M95M01-DFCS6TP/K
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0051 |
