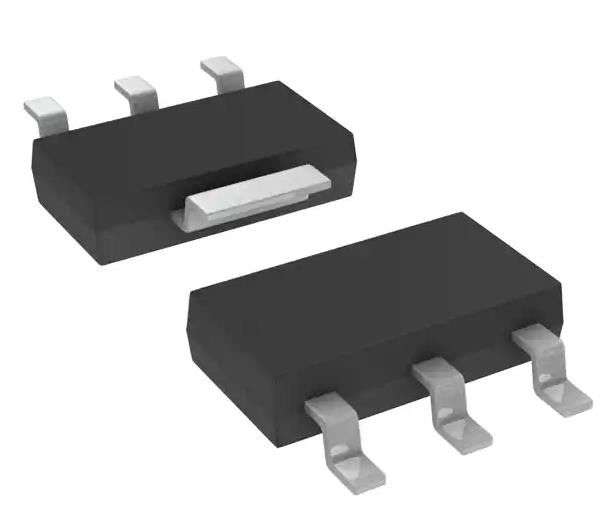

LM2940IMP-12/NOPB Linear Voltage Regulator IC Positive Fixed 1 Output 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2940IMP-12/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 26V | Voltage - Output (Min/Fixed): | 12V |
| Voltage Dropout (Max): | 1V @ 1A | Current - Output: | 1A |
| Current - Quiescent (Iq): | 10 MA | Current - Supply (Max): | 15 MA |
Product Description
LM2940IMP-12/NOPB Linear Voltage Regulator IC Positive Fixed 1 Output 1A
Specifications of LM2940IMP-12/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 15 mA |
| PSRR | 66dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 |
| Base Product Number | LM2940 |
Features of LM2940IMP-12/NOPB
* Input Voltage Range = 6 V to 26 V
* Dropout Voltage Typically 0.5 V at lour = 1 A
* Output Current in Excess of 1 A
* Output Voltage Trimmed Before Assembly
* Reverse Battery Protection
* Internal Short Circuit Current Limit
* Mirror lmage Insertion Protection
* p* Product Enhancement Tested
Descriptions of LM2940IMP-12/NOPB
• Post Regulator for Switching Supplies
• Logic Power Supplies
• Industrial Instrumentation
Environmental & Export Classifications of LM2940IMP-12/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
