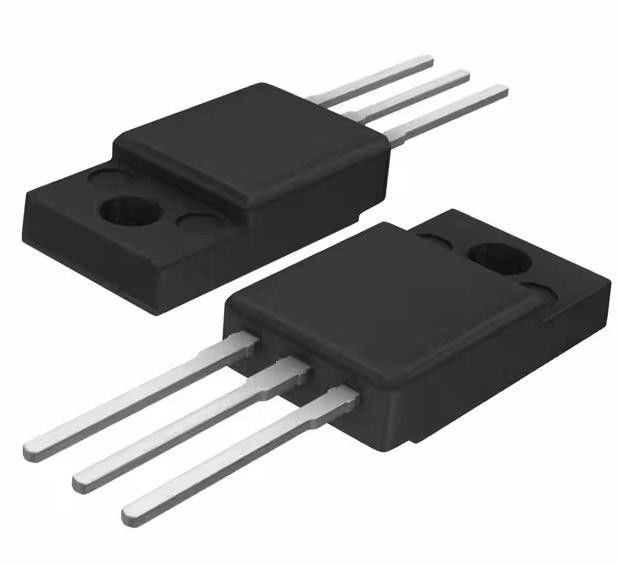

MJF127G Bipolar (BJT) Transistor PNP - Darlington 100 V 5 A 2 W Through Hole
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MJF127G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | PNP - Darlington | Current - Collector (Ic) (Max): | 0.208333333 |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 100 V | Vce Saturation (Max) @ Ib, Ic: | 3.5V @ 20mA, 5A |
| Current - Collector Cutoff (Max): | 10µA | DC Current Gain (hFE) (Min) @ Ic, Vce: | 2000 @ 3A, 3V |
| Power - Max: | 2 W | Operating Temperature: | -65°C ~ 150°C (TJ) |
Product Description
MJF127G Bipolar (BJT) Transistor PNP - Darlington 100 V 5 A 2 W Through Hole
Specifications of MJF127G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| Transistor Type | PNP - Darlington |
| Current - Collector (Ic) (Max) | 0.208333333 |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 3.5V @ 20mA, 5A |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 2000 @ 3A, 3V |
| Power - Max | 2 W |
| Frequency - Transition | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
| Base Product Number | MJF127 |
Features of MJF127G
• Electrically Similar to the Popular TIP122 and TIP127
• 100 VCEO(sus)
• 5.0 A Rated Collector Current
• No Isolating Washers Required
• Reduced System Cost
• High DC Current Gain − 2000 (Min) @ IC = 3 Adc
• UL Recognized, File #E69369, to 3500 VRMS Isolation
• Pb−Free Packages are Available*
Descriptions of MJF127G
Designed for general−purpose amplifiers and switching applications, where the mounting surface of the device is required to be electrically isolated from the heatsink or chassis.
Environmental & Export Classifications of MJF127G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
