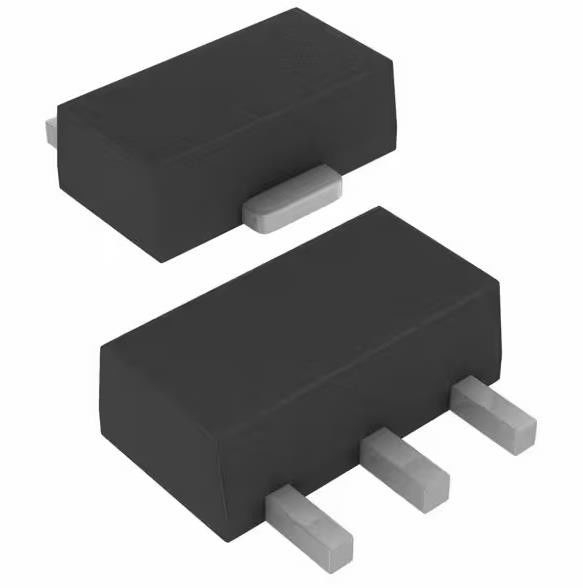

NJM78L05UA-TE2 Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NJM78L05UA-TE2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Output Type: | Fixed |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 30V |
| Voltage - Output (Min/Fixed): | 5V | Current - Output: | 100mA |
| Current - Quiescent (Iq): | 6 MA | PSRR: | 69dB (120Hz) |
Product Description
NJM78L05UA-TE2 Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
Specifications of NJM78L05UA-TE2
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Nisshinbo Micro Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 6 mA |
| PSRR | 69dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89 |
Features of NJM78L05UA-TE2
● Internal Short Circuit Current Limit
● Internal Thermal Overload Protection
● Excellent Ripple Rejection
● Guaranteeíd 100mA Output Current
● Package Outline TO-92, SOT-89
● Bipolar Technology
Descriptions of NJM78L05UA-TE2
The NJM78L00 series of 3-Terminal Positive Voltage Regulators is constructed using the New JRC Planar epitaxial process.
Environmental & Export Classifications of NJM78L05UA-TE2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
