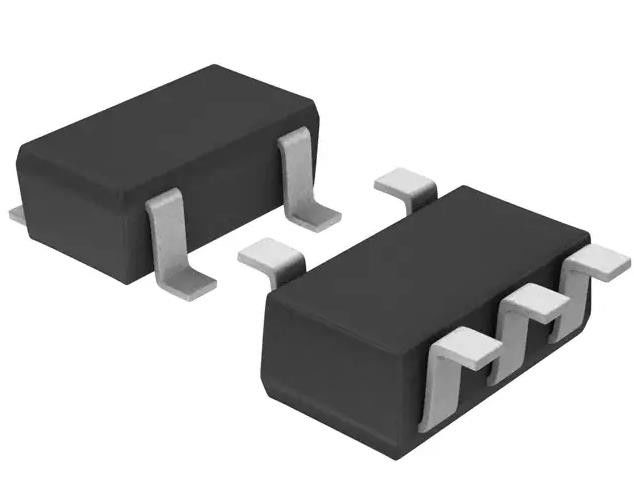

BH30FB1WG-TR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 5-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BH30FB1WG-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 5.5 V | Voltage - Output (Min/Fixed): | 3V |
| Voltage Dropout (Max): | 0.45V @ 100mA | Current - Output: | 150mA |
| Current - Quiescent (Iq): | 70 µA | Current - Supply (Max): | 70 µA |
| High Light: | BH30FB1WG-TR,BH30FB1WG-TR Linear Voltage Regulator IC |
||
Product Description
BH30FB1WG-TR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 5-SSOP
Specifications of BH30FB1WG-TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 70 µA |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | 5-SSOP |
| Base Product Number | BH30FB1 |
Features of BH30FB1WG-TR
1) High accuracy output voltage: ±1%
2) High ripple rejection ratio: 70 dB (BHŜŜFB1WHFV/WG, BHŜŜLB1WHFV/WG)
3) Low dropout voltage: 60 mV (when current is 100 mA) (BHŜŜMA3WHFV)
4) Stable with ceramic output capacitors
5) Low Bias current : 40µA (IO = 50 mA) (BHŜŜFB1WHFV/WG)
6) Output voltage ON/OFF control
7) Built-in over-current protection and thermal shutdown circuits
8) Ultra-small power package: HVSOF5 (BHŜŜFB1WHFV, BHŜŜLB1WHFV)
9) Ultra-small power package: HVSOF6 (BHŜŜMA3WHFV)
Applications of BH30FB1WG-TR
Battery-driven portable devices and etc.
Environmental & Export Classifications of BH30FB1WG-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
