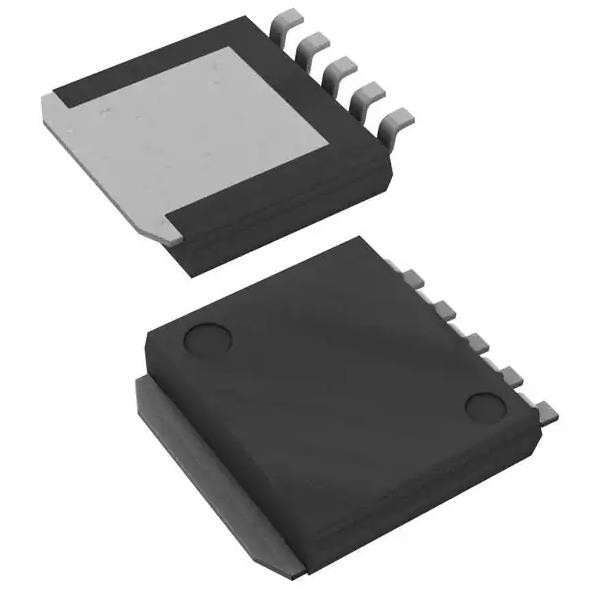

BD3571HFP-TR Linear Voltage Regulator IC Positive Fixed 1 Output 500mA HRP-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BD3571HFP-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 36 V | Voltage - Output (Min/Fixed): | 5V |
| Voltage Dropout (Max): | 0.48V @ 200mA | Current - Output: | 500mA |
| Current - Quiescent (Iq): | 30 µA | Current - Supply (Max): | 50 µA |
| High Light: | BD3571HFP-TR,BD3571HFP-TR Linear Voltage Regulator IC |
||
Product Description
BC858CDXV6T1G Bipolar (BJT) Transistor Array 2 PNP (Dual) 30V 100mA 100MHz 500mW
Specifications of BD3571HFP-TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.48V @ 200mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 30 µA |
| Current - Supply (Max) | 50 µA |
| PSRR | 55dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | HRP-5 (5 Leads + Tab) |
| Supplier Device Package | HRP-5 |
| Base Product Number | BD3571 |
Features of BD3571HFP-TR
1) Ultra-low quiescent current: 30μA (TYP.)
2) Low-saturation voltage type P-channel DMOS output transistors
3) High output voltage precision: 2%／Iomax = 500 mA
4) Low-ESR ceramic capacitors can be used as output capacitors.
5) Vcc power supply voltage = 50 V
6) Built-in overcurrent protection circuit and thermal shutdown circuit
7) TO252-3, TO252-5, HRP5 Package
Applications of BD3571HFP-TR
Onboard vehicle devices (body-control, car stereos, satellite navigation systems, etc.)
Environmental & Export Classifications of BD3571HFP-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
