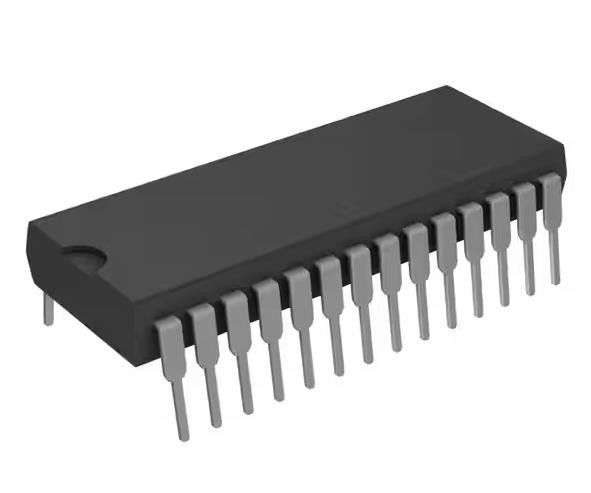

AT28C256-15PU EEPROM Memory IC 256Kbit Parallel 150 Ns 28-PDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AT28C256-15PU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | EEPROM |
|---|---|---|---|
| Memory Size: | 256Kbit | Memory Organization: | 32K X 8 |
| Memory Interface: | Parallel | Write Cycle Time - Word, Page: | 10ms |
| Access Time: | 150 Ns | Voltage - Supply: | 4.5V ~ 5.5V |
| High Light: | AT28C256-15PU,AT28C256-15PU EEPROM Memory IC |
||
Product Description
ACS758LCB-100U Current Sensor 100A 1 Channel Hall Effect Open Loop Unidirectional 5-CB
Specifications of AT28C256-15PU
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tube |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 256Kbit |
| Memory Organization | 32K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 10ms |
| Access Time | 150 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
| Base Product Number | AT28C256 |
Specifications of AT28C256-15PU
• Fast Read Access Time: 150 ns
• Automatic Page Write Operation:
– Internally organized as 32,768 x 8 (256K)
– Internal address and data latches for 64 bytes
– Internal control timer
• Fast Write Cycle Time:
– Page Write cycle time: 3 ms or 10 ms maximum
– 1 to 64-byte Page Write operation
• Low-Power Dissipation:
– 50 mA active current
– 200 µA CMOS standby current
• Hardware and Software Data Protection
• DATA Polling for End of Write Detection
• High Reliability CMOS Technology:
– Endurance: 10,000 or 100,000 cycles
– Data retention: 10 years
• Single 5V ± 10% Supply
• CMOS and TTL Compatible Inputs and Outputs
• JEDEC®
Approved Byte-Wide Pinout
• Industrial Temperature Range
Introduction of AT28C256-15PU
The AT28C256 is a high‑performance Electrically Erasable and Programmable Read‑Only Memory (EEPROM). Its 256‑Kb memory is organized as 32,768 words by 8 bits. Manufactured with Microchip’s advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 440 mW. When the device is deselected, the CMOS standby current is less than 200 µA.
Environmental & Export Classifications of AT28C256-15PU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0051 |
