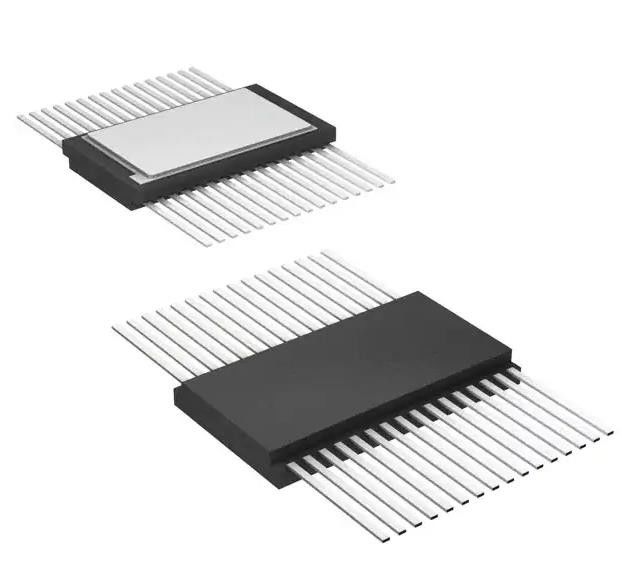

AT28C040-20FI EEPROM Memory IC 4Mbit Parallel 200 Ns 32-FlatPack Bottom-Brazed
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AT28C040-20FI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | EEPROM |
|---|---|---|---|
| Memory Size: | 4Mbit | Memory Organization: | 512K X 8 |
| Memory Interface: | Parallel | Write Cycle Time - Word, Page: | 10ms |
| Access Time: | 200 Ns | Voltage - Supply: | 4.5V ~ 5.5V |
| High Light: | AT28C040-20FI,AT28C040-20FI EEPROM Memory IC |
||
Product Description
AT28C040-20FI EEPROM Memory IC 4Mbit Parallel 200 ns 32-FlatPack Bottom-Brazed
Specifications of AT28C040-20FI
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tube |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 4Mbit |
| Memory Organization | 512K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 10ms |
| Access Time | 200 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | 32-CFlatPack |
| Supplier Device Package | 32-FlatPack, Ceramic Bottom-Brazed |
| Base Product Number | AT28C040 |
Specifications of AT28C040-20FI
• Read Access Time – 200 ns
• Automatic Page Write Operation
– Internal Address and Data Latches for 256 Bytes
– Internal Control Timer
• Fast Write Cycle Time
– Page Write Cycle Time – 10 ms Maximum
– 1 to 256 Byte Page Write Operation
• Low Power Dissipation
– 50 mA Active Current
• Hardware and Software Data Protection
• DATA Polling for End of Write Detection
• High Reliability CMOS Technology
– Endurance: 10,000 Cycles
– Data Retention: 10 Years
• Single 5V ± 10% Supply
• CMOS and TTL Compatible Inputs and Outputs
• JEDEC Approved Byte-Wide Pinout
Introduction of AT28C040-20FI
The AT28C040 is a high-performance electrically erasable and programmable readonly memory (EEPROM). Its 4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 200 ns with power dissipation of just 440 mW.
Environmental & Export Classifications of AT28C040-20FI
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A001A2C |
| HTSUS | 8542.32.0051 |
