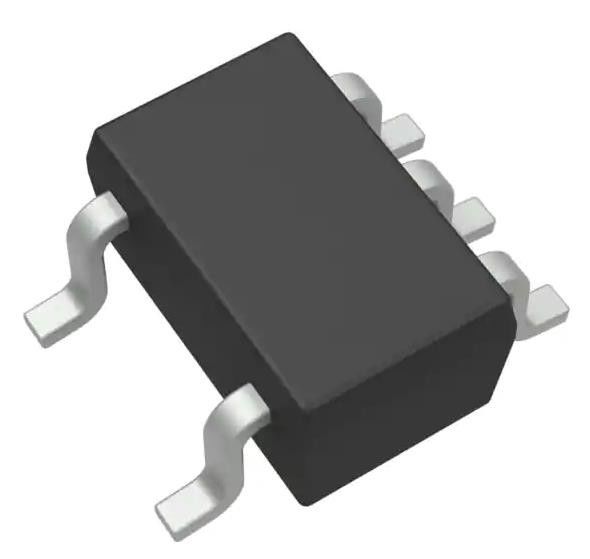

TPS71550DCKR Linear Voltage Regulator IC Positive Fixed 1 Output 50mA SC-70-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS71550DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Output Type: | Fixed |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 24V |
| Operating Temperature: | -40°C ~ 125°C | Voltage Dropout (Max): | 0.75V @ 50mA |
| Voltage - Output (Min/Fixed): | 5V | Current - Output: | 50mA |
| High Light: | TPS71550DCKR,TPS71550DCKR Linear Voltage Regulator IC,Positive Fixed Linear Voltage Regulator IC |
||
Product Description
TPS71550DCKR Linear Voltage Regulator IC Positive Fixed 1 Output 50mA SC-70-5
Specifications of TPS71550DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.75V @ 50mA |
| Current - Output | 50mA |
| Current - Quiescent (Iq) | 4.2 µA |
| PSRR | 60dB (100kHz) |
| Control Features | - |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | TPS71550 |
Features of TPS71550DCKR
• Input voltage range:
– 2.5 V to 24 V (30 V max for new chip only)
• Available output voltage options:
– Fixed: 1.8 V to 5 V
– Adjustable: 1.205 V to 15 V
• Output current: Up to 50 mA
• Very low IQ: 3.2 μA at 50-mA load current
• Stable with output capacitor ≥ 0.47 μF
• Overcurrent protection
• Package: 5-pin SC70 (DCK)
• Operating junction temperature: –40°C to +125°C
• For an 80-mA rated current and higher power package, see the TPS715A
Applications of TPS71550DCKR
• Home and building automation
• Retail automation and payment
• Grid infrastructure
• Medical applications
• Lighting applications
Environmental & Export Classifications of TPS71550DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
