TPS54618RTER Switching Regulator IC Positive Adjustable 0.799V 1 Output 6A 16-WFQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54618RTER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 2.95V | Voltage - Input (Max): | 6V |
| Voltage - Output (Min/Fixed): | 0.799V | Voltage - Output (Max): | 4.5V |
| Current - Output: | 6A | Frequency - Switching: | 200kHz ~ 2MHz |
| High Light: | TPS54618RTER,TPS54618RTER Switching Regulator IC |
||
Product Description
TPS54618RTER Switching Regulator IC Positive Adjustable 0.799V 1 Output 6A 16-WFQFN
Specifications of TPS54618RTER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SWIFT™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.95V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.799V |
| Voltage - Output (Max) | 4.5V |
| Current - Output | 6A |
| Frequency - Switching | 200kHz ~ 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

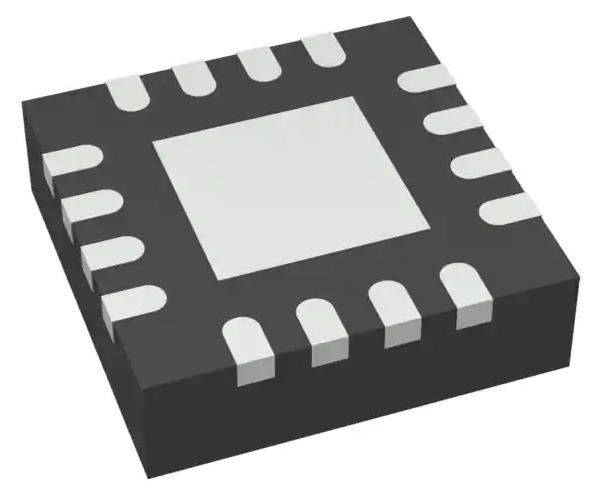

| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Base Product Number | TPS54618 |
Features of TPS54618RTER
• Two 12-mΩ (typical) MOSFETs for high efficiency at 6-A loads
• 300-kHz to 2-MHz switching frequency
• 0.8-V ±1% Voltage reference over temperature (–40°C to +150°C)
• Synchronizes to external clock
• Adjustable slow start and sequencing
• UV and OV power-good output
• –40°C to 150°C Operating Junction Temperature Range
• Thermally enhanced 3-mm × 3-mm, 16-pin WQFN package
• Pin-Compatible to TPS54418
• Create a custom design using the TPS54618 with the WEBENCH® Power Designer
Applications of TPS54618RTER
• Low-voltage, high-density power systems
• Point-of-load regulation for high-performance DSPs, FPGAs, and microprocessors
• Broadband, networking, and optical communications infrastructure
Environmental & Export Classifications of TPS54618RTER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
