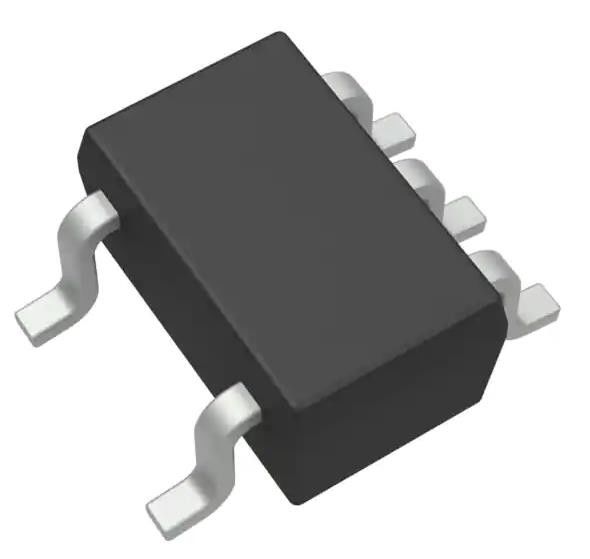

TLV70018DCKR Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SC-70-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV70018DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 5.5V | Voltage - Input (Max): | 1.8V |
| Current - Output: | 200mA | Voltage Dropout (Max): | 0.25V @ 200mA |
| Current - Supply (Max): | 270 µA | Current - Quiescent (Iq): | 55 µA |
| High Light: | TLV70018DCKR,TLV70018DCKR Linear Voltage Regulator IC |
||
Product Description
TLV70018DCKR Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SC-70-5
Specifications of TLV70018DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 270 µA |
| PSRR | 68dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | TLV70018 |
Features of TLV70018DCKR
* Very Low Dropout:
- 43 mV at lout = 50 mA, VouT = 2.8 V
- 85 mV at lout = 100 mA, VouT = 2.8 V
- 175 mV at lout = 200 mA, VouT = 2.35 V
* 2% Accuracy
* Low lo: 31 uA
* Available in Fixed-Output Voltages from 1 .2 V to4.8V
* High PSRR: 68 dB at 1 kHz
* Stable With Effective Capacitance of 0.1 pF(1)
* Thermal Shutdown and Overcurrent Protection
* Available in 1.5-mm x 1.5-mm SON-6,SOT23-5and SC-70 Packages
Applications of TLV70018DCKR
* Wireless Handsets
* Smart Phones, PDAs
* ZigBee"Networks
* Bluetooth Devices
* Li-lon Operated Handheld Products
* WLAN and Other PC Add-on Cards
Environmental & Export Classifications of TLV70018DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
