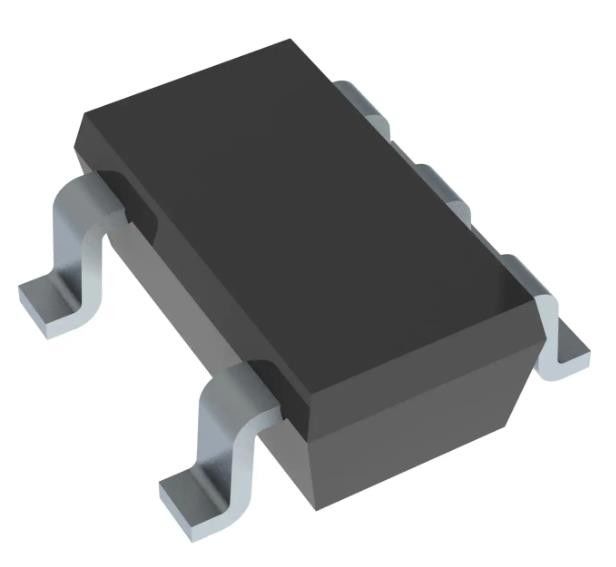

TPS70933DBVR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS70933DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 30V | Voltage - Output (Min/Fixed): | 3.3V |
| Current - Output: | 150mA | Current - Quiescent (Iq): | 2.05 µA |
| Voltage Dropout (Max): | 1.4V @ 150mA | Current - Supply (Max): | 350 µA |
| High Light: | TPS70933DBVR,TPS70933DBVR Linear Voltage Regulator IC |
||
Product Description
TPS70933DBVR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Specifications of TPS70933DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.4V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 2.05 µA |
| Current - Supply (Max) | 350 µA |
| PSRR | 80dB ~ 52dB (10Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS70933 |
Features of TPS70933DBVR
• Ultra-low IQ: 1 μA
• Reverse current protection
• Low ISHUTDOWN: 150 nA
• Input voltage range: 2.7 V to 30 V
• Supports 200-mA peak output
• 2% accuracy over temperature
• Available in fixed-output voltages: 1.2 V to 6.5 V
• Thermal shutdown and overcurrent protection
• Packages: SOT-23-5, WSON-6
Applications of TPS70933DBVR
• Smoke and heat detectors
• Thermostats
• Motion detectors (PIR, uWave, and so forth)
• Cordless power tools
• Appliance battery packs
• Electricity meters
• Water meters
Environmental & Export Classifications of TPS70933DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
