UA78L08ACLPR Linear Voltage Regulator IC Positive Fixed 1 Output 100mA TO-92-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UA78L08ACLPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 23V | Voltage - Output (Min/Fixed): | 8V |
| Voltage Dropout (Max): | 1.7V @ 40mA | Current - Output: | 100mA |
| PSRR: | 46dB (120Hz) | Protection Features: | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| High Light: | UA78L08ACLPR,UA78L08ACLPR Linear Voltage Regulator IC,Positive Fixed Linear Voltage Regulator IC |
||
Product Description

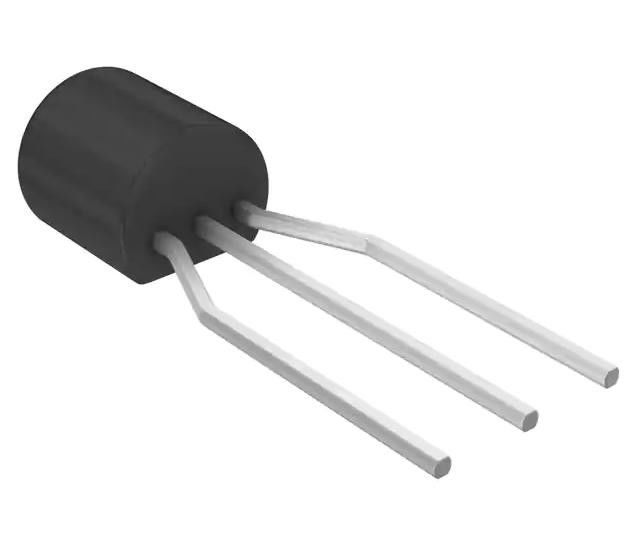

UA78L08ACLPR Linear Voltage Regulator IC Positive Fixed 1 Output 100mA TO-92-3
Specifications of UA78L08ACLPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 23V |
| Voltage - Output (Min/Fixed) | 8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.7V @ 40mA |
| Current - Output | 100mA |
| PSRR | 46dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 |
| Base Product Number | UA78L08 |
Features of UA78L08ACLPR
• Input voltage range (VI ): 4.75 V to 35 V
• Output voltage range (VO):
– 2.6 V to 15 V (for legacy chip)
– 3.3 V to 15 V (for new chip)
• Output current: Up to 100 mA
• Quiescent current IQ: 3.8 mA
• Built-in short-circuit current limiting and thermal protection
• Stable without any external component
• Supported temperature range:
– Legacy chip C and AC versions: 0°C to +125°C
– Legacy chip AI version: –40°C to +125°C
– New chip: –40°C to +125°C
• Packages:
– 8-pin, 4.9-mm × 3.91-mm SOIC
– 3-pin, 4.3-mm × 4.3-mm TO-92
– 3-pin, 4.5-mm × 2.5-mm SOT-89
Introduction of UA78L08ACLPR
• Motor drives
• Appliances
• Building automation
• Flow transmitters
• Factory automation and control
Environmental & Export Classifications of UA78L08ACLPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
