TPS7A4901DGNR Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A4901DGNR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 35V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.194V | Voltage - Output (Max): | 33V |
| Voltage Dropout (Max): | 0.6V @ 150mA | Current - Output: | 150mA |
| Current - Quiescent (Iq): | 100 µA | Current - Supply (Max): | 800 µA |
| PSRR: | 72dB (120Hz) | 72dB (120Hz): | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| High Light: | TPS7A4901DGNR,TPS7A4901DGNR Linear Voltage Regulator IC,150mA Linear Voltage Regulator IC |
||
Product Description
TPS7A4901DGNR Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA
Specifications of TPS7A4901DGNR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 1.194V |
| Voltage - Output (Max) | 33V |
| Voltage Dropout (Max) | 0.6V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 800 µA |
| PSRR | 72dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

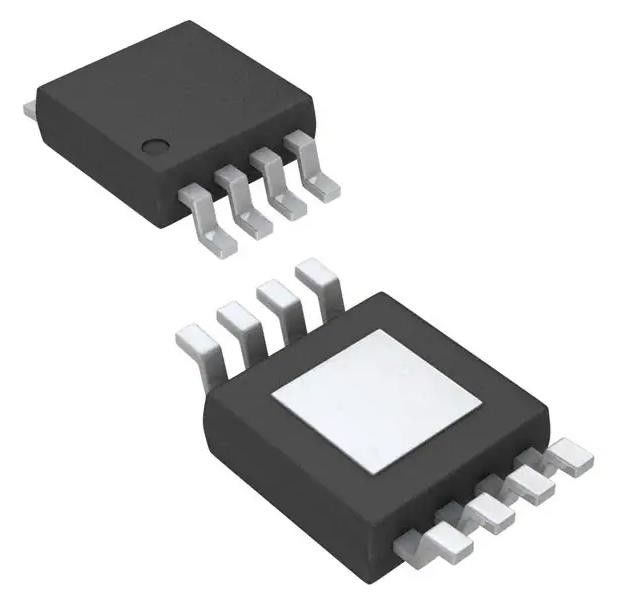

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-HVSSOP |
| Base Product Number | TPS7A4901 |
Features of TPS7A4901DGNR
* Input Voltage Range: 3 V to 36 V
* Noise:
- 12.7 VRms (20 Hz to 20 kHz)
- 15.4 VRms (10 Hz to 100 kHz)
* Power-Supply Ripple Rejection:
- 72 dB (120 Hz)
- 52 dB (10 Hz to 400 kHz)
* Adjustable Output: 1.194 V to 33 V
* Output Current: 150 mA
* Dropout Voltage: 260 mV at 100 mA
* Stable with Ceramic Capacitors 2 2.2 uF
* CMOS Logic-Level-Compatible Enable Pin
* Fixed Current-Limit and Thermal ShutdownProtection
* Packages: 8-Pin HVSSOP PowerPADTM and3-mm x 3-mm VSON
* Operating Temperature Range:-40°C to 125°C
Introduction of TPS7A4901DGNR
* Supply Rails for Op Amps, DACs, ADCs, andOther High-Precision Analog Circuitry
* Audio
* Post DC-DC Converter Regulation andRipple Filtering
* Test and Measurement
* Rx, Tx, and PA Circuitry
* Industrial Instrumentation
* Base Stations and Telecom Infrastructure
Environmental & Export Classifications of TPS7A4901DGNR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
