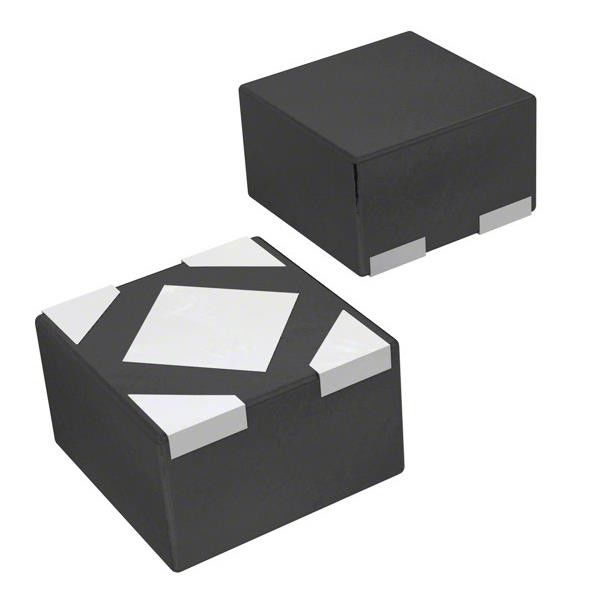

NCP145AMX120TCG Linear Voltage Regulator IC 1 Output 500mA 4-XDFN (1.2x1.2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCP145AMX120TCG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 1.2V |
| Voltage Dropout (Max): | 0.25V @ 500mA | Current - Output: | 500mA |
| Current - Supply (Max): | 110 µA | PSRR: | 70dB (1kHz) |
Product Description
NCP145AMX120TCG Linear Voltage Regulator IC 1 Output 500mA 4-XDFN (1.2x1.2)
Specifications of NCP145AMX120TCG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 500mA |
| Current - Output | 500mA |
| Current - Supply (Max) | 110 µA |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-XDFN (1.2x1.2) |
| Base Product Number | NCP145 |
Features of NCP145AMX120TCG
• Input Voltage Range: 1.0 V to 5.5 V
• Bias Voltage Range: 2.4 V to 5.5 V
• Fixed Voltage Versions Available
• Output Voltage Range: 1.0 V to 1.8 V (Fixed)
• ±1.5% Accuracy over Temperature, 0.5% VOUT @ 25°C
• Ultra−Low Dropout: Typ. 140 mV at 500 mA
• Very Low Bias Input Current of Typ. 80 A
• Very Low Bias Input Current in Disable Mode: Typ. 0.5 A
• Logic Level Enable Input for ON/OFF Control
• Output Active Discharge Option Available
• Stable with a 2.2 F Ceramic Capacitor
• Available in XDFN4 − 1.2 mm x 1.2 mm x 0.4 mm Package
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of NCP145AMX120TCG
• Battery−powered Equipment
• Smartphones, Tablets
• Cameras, DVRs, STB and Camcorders
Environmental & Export Classifications of NCP145AMX120TCG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
