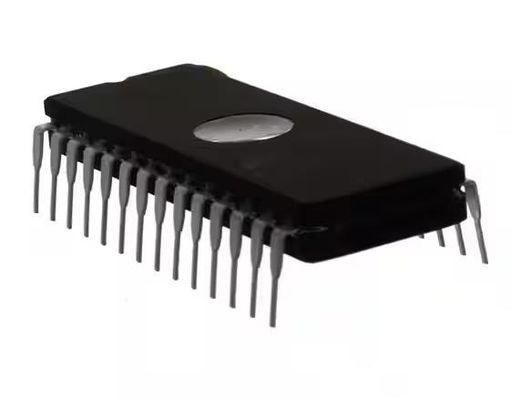

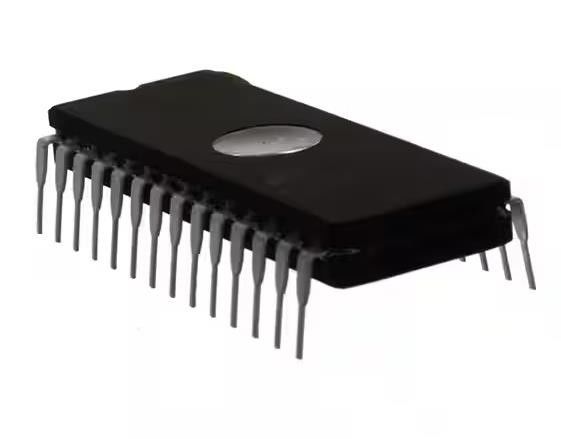

M27C512-10F1 Memory IC 512Kbit Parallel 100 ns 28-CDIP Frit Seal with Window
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M27C2001-12F1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | EPROM |
|---|---|---|---|
| Memory Size: | 512Kbit | Memory Organization: | 64K X 8 |
| Memory Interface: | Parallel | Access Time: | 100 Ns |
| Voltage - Supply: | 4.5V ~ 5.5V | Operating Temperature: | 0°C ~ 70°C (TA) |
Product Description
M27C512-10F1 Memory IC 512Kbit Parallel 100 ns 28-CDIP Frit Seal with Window
Specifications of M27C2001-12F1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Memory Type | Non-Volatile |
| Memory Format | EPROM |
| Technology | EPROM - UV |
| Memory Size | 512Kbit |
| Memory Organization | 64K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | - |
| Access Time | 100 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) Window |
| Supplier Device Package | 28-CDIP Frit Seal with Window |
| Base Product Number | M27C512 |
Features of M27C2001-12F1
■ 5V ± 10% supply voltage in read operation
■ Access time: 45 ns
■ Low power “CMOS” consumption:
– Active current 30 mA
– Standby current 100 µA
■ Programming voltage: 12.75 V ± 0.25 V
■ Programming time around 6 s.
■ Electronic Signature
– Manufacturer code: 20h
– Device code: 3Dh
■ Packages
– ECOPACKÆ versions
Applications of M27C2001-12F1
The M27C512 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits.
Environmental & Export Classifications of M27C2001-12F1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | OBSOLETE |
| HTSUS | 8542.32.0061 |
