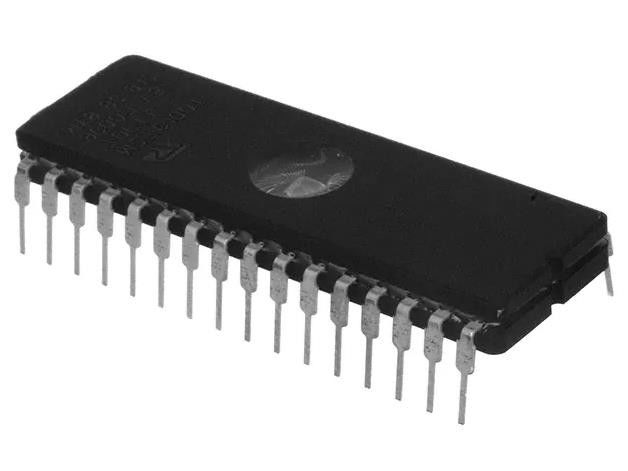

M27C2001-12F1 EPROM - UV Memory IC 2Mbit Parallel 120 ns 32-CDIP with Window
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M27C2001-12F1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | EPROM |
|---|---|---|---|
| Memory Size: | 2Mbit | Memory Organization: | 256K X 8 |
| Memory Interface: | Parallel | Access Time: | 120 Ns |
| Voltage - Supply: | 4.5V ~ 5.5V | Operating Temperature: | 0°C ~ 70°C (TA) |
Product Description
M27C2001-12F1 EPROM - UV Memory IC 2Mbit Parallel 120 ns 32-CDIP with Window
Specifications of M27C2001-12F1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Memory Type | Non-Volatile |
| Memory Format | EPROM |
| Technology | EPROM - UV |
| Memory Size | 2Mbit |
| Memory Organization | 256K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | - |
| Access Time | 120 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 32-CDIP (0.600", 15.24mm) Window |
| Supplier Device Package | 32-CDIP Frit Seal with Window |
| Base Product Number | M27C2001 |
Features of M27C2001-12F1
■ 5V ± 10% supply voltage in Read operation
■ Access time: 55ns
■ Low power consumption:
– Active Current 30mA at 5MHz
– Standby Current 100µA
■ Programming voltage: 12.75V ± 0.25V
■ Programming time: 100µs/word
■ Electronic signature
– Manufacturer Code: 20h
– Device Code: 61h
■ Packages
– ECOPACK® packages available
Applications of M27C2001-12F1
The M27C2001 is a high speed 2 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organized as 262,144 by 8 bits.
Environmental & Export Classifications of M27C2001-12F1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0061 |
