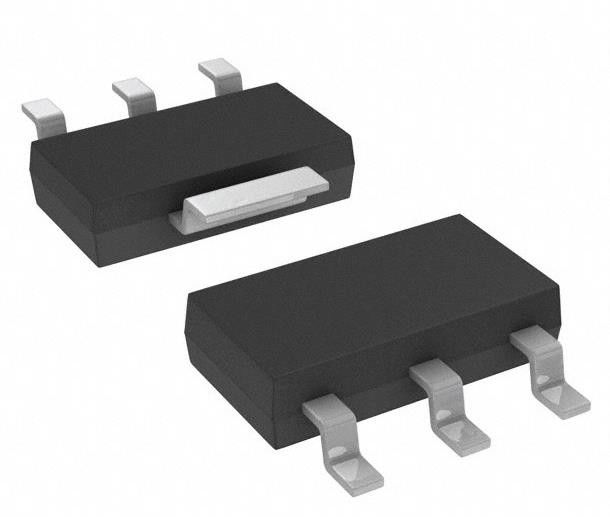

BD450M2WFP3-CE2 Linear Voltage Regulator IC Positive Fixed 1 Output 200mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BD450M2WFP3-CE2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Output Type: | Fixed |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 42V |
| Voltage - Output (Min/Fixed): | 5V | Voltage Dropout (Max): | 0.35V @ 100mA |
| Current - Output: | 200mA | Current - Quiescent (Iq): | 90 µA |
Product Description
BD450M2WFP3-CE2 Linear Voltage Regulator IC Positive Fixed 1 Output 200mA
Specifications of BD450M2WFP3-CE2
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Rohm Semiconductor |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 100mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | 150 µA |
| PSRR | 65dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Thermal Shutdown |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4F |
| Base Product Number | BD450 |
Features of BD450M2WFP3-CE2
◼ Qualified for Automotive Applications
◼ Wide Temperature Range: -40 °C to +150 °C
◼ Wide Operating Input Range: 3.0 V to 42 V
◼ Low Quiescent Current: 40 μA (Typ.)
◼ Output Current: 200 mA
◼ High Output Voltage Accuracy: ±2 %
◼ Output Voltage: 3.3 V or 5.0 V (Typ.)
◼ Enable Input (Only W: Includes Enable Input)
◼ Over Current Protection (OCP)
◼ Thermal Shutdown Protection (TSD)
◼ AEC-Q100 Qualified (Note1) (Note1:Grade1)
Applications of BD450M2WFP3-CE2
◼ Automotive (body, audio system, navigation system, etc.)
Environmental & Export Classifications of BD450M2WFP3-CE2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
