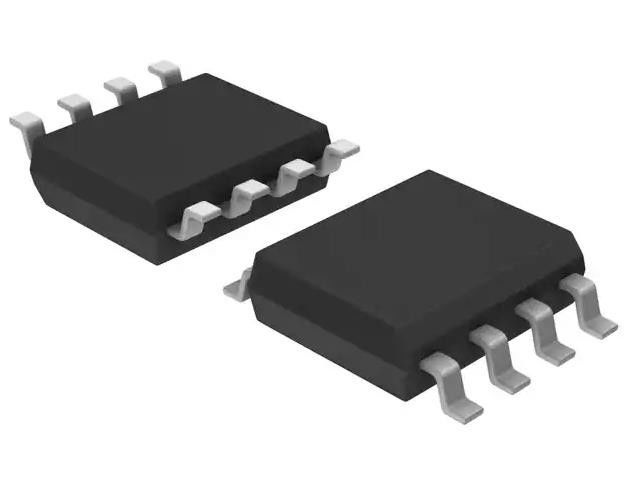

W25X20CLSNIG FLASH Memory IC 2Mbit SPI 104 MHz 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | W25X20CLSNIG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | FLASH |
|---|---|---|---|
| Technology: | FLASH | Memory Size: | 2Mbit |
| Memory Organization: | 256K X 8 | Memory Interface: | SPI |
| Clock Frequency: | 104 MHz | Write Cycle Time - Word, Page: | 800µs |
Product Description
W25X20CLSNIG FLASH Memory IC 2Mbit SPI 104 MHz 8-SOIC
Specifications of W25X20CLSNIG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Winbond Electronics |
| Series | SpiFlash® |
| Package | Tube |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH |
| Memory Size | 2Mbit |
| Memory Organization | 256K x 8 |
| Memory Interface | SPI |
| Clock Frequency | 104 MHz |
| Write Cycle Time - Word, Page | 800µs |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | W25X20 |
Features of W25X20CLSNIG
* Family of Serial Flash Memories
– W25X20CL: 2M-bit/256K-byte (262,144)
– 256-bytes per programmable page
– Uniform erasable 4KB, 32KB & 64KB regions.
* SPI with Single / Dual Outputs / I/O
– Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
– Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
* Data Transfer up to 208M-bits / second
– Clock operation to 104MHz
– 208MHz equivalent Dual I/O SPI
– Auto-increment Read capability
* Efficient “Continuous Read Mode”
– Low Instruction overhead
– Continuous Read
– As few as 16 clocks to address memory
– Allows true XIP (execute in place) operation
Applications of W25X20CLSNIG
The W25X20CL (2M-bit) Serial Flash memories provide a storage solution for systems with limited space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial Flash devices.
Environmental & Export Classifications of W25X20CLSNIG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0071 |
