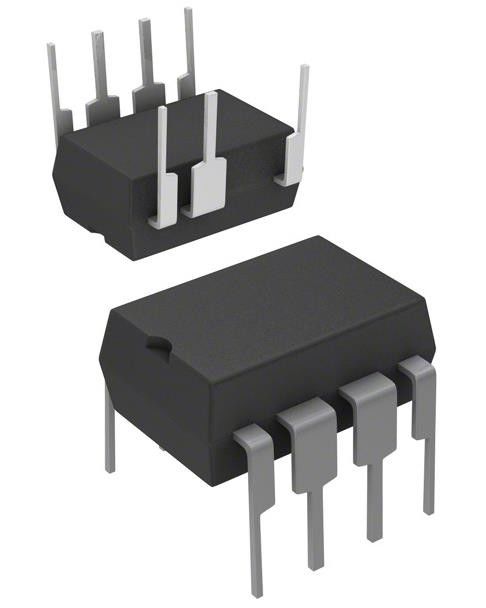

TNY267PN Ic Chips Converter Offline Flyback Topology 132kHz 8-PDIP-B
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TNY267PN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Internal Switch(s): | Yes | Voltage - Breakdown: | 700V |
|---|---|---|---|
| Topology: | Flyback | Duty Cycle: | 65% |
| Frequency - Switching: | 132kHz | Power (Watts): | 19 W |
| Fault Protection: | Current Limiting, Open Loop, Over Temperature, Short Circuit | Control Features: | EN |
| High Light: | TNY267PN ic chips,8-PDIP-B ic chips |
||
Product Description
TNY267PN Converter Offline Flyback Topology 132kHz 8-PDIP-B
Specifications of TNY267PN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Mfr | Power Integrations |
| Series | TinySwitch®-II |
| Package | Tube |
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz |
| Power (Watts) | 19 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| Mounting Type | Through Hole |
| Base Product Number | TNY267 |
Features of TNY267PN
* Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI fi lter component costs
* 132 kHz operation reduces transformer size – allows use of EF12.6 or EE13 cores for low cost and small size
Applications of TNY267PN
TinySwitch-II integrates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device.
