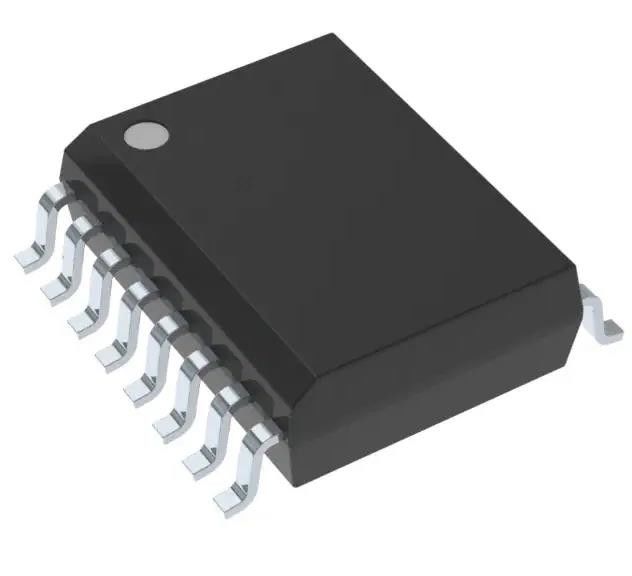

S25FL128SAGMFB013 FLASH - NOR Memory IC 128Mbit SPI - Quad I/O 133 MHz 16-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S25FL128SAGMFB013 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | FLASH |
|---|---|---|---|
| Technology: | FLASH - NOR | Memory Size: | 128Mbit |
| Memory Organization: | 16M X 8 | Memory Interface: | SPI - Quad I/O |
| Clock Frequency: | 133 MHz | Voltage - Supply: | 2.7V ~ 3.6V |
Product Description
S25FL128SAGMFB013 FLASH - NOR Memory IC 128Mbit SPI - Quad I/O 133 MHz 16-SOIC
Specifications of S25FL128SAGMFB013
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Infineon Technologies |
| Series | FL-S |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 128Mbit |
| Memory Organization | 16M x 8 |
| Memory Interface | SPI - Quad I/O |
| Clock Frequency | 133 MHz |
| Write Cycle Time - Word, Page | - |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | S25FL128 |
Features of S25FL128SAGMFB013
• CMOS 3.0 V core with versatile I/O
• SPI with multi-I/O
- SPI clock polarity and phase modes 0 and 3
- DDR option
- Extended addressing: 24- or 32-bit address options
- Serial command set and footprint compatible with S25FL-A, S25FL-K, and S25FL-P SPI families
- Multi I/O command set and footprint compatible with S25FL-P SPI family
• READ commands
- Normal, Fast, Dual, Quad, Fast DDR, Dual DDR, Quad DDR
- AutoBoot - Power up or reset and execute a Normal or Quad read command automatically at a preselected address
- Common flash interface (CFI) data for configuration information
Applications of S25FL128SAGMFB013
The Infineon S25FL128S and S25FL256S devices are flash non-volatile memory products using:
• MIRRORBIT™ technology - that stores two data bits in each memory array transistor
• Eclipse architecture - that dramatically improves program and erase performance
• 65-nm process lithography
Environmental & Export Classifications of S25FL128SAGMFB013
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |
