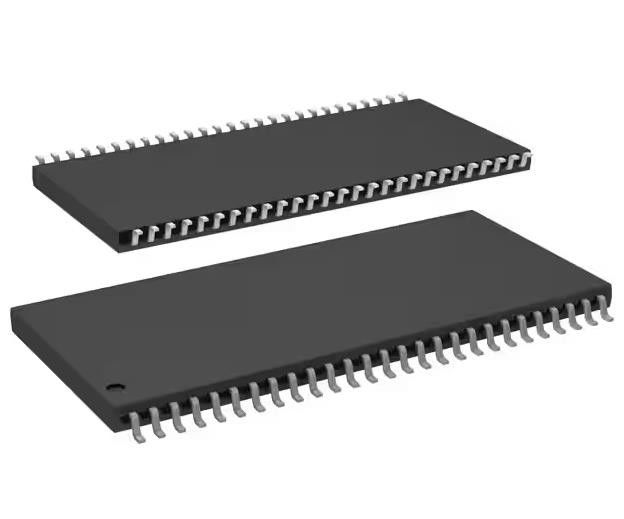

IS42S16320F-7TLI SRAM Synchronous SDR Memory IC 4.5Mbit Parallel 117 MHSRAM
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IS42S16320F-7TLI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Size: | 4.5Mbit | Memory Organization: | 128K X 36 |
|---|---|---|---|
| Memory Interface: | Parallel | Base Product Number: | IS64LF12836 |
| Clock Frequency: | 117 MHz | Access Time: | 7.5 Ns |
| Voltage - Supply: | 3.135V ~ 3.465V | Operating Temperature: | -40°C ~ 125°C (TA) |
Product Description
IS42S16320F-7TLI SRAM Synchronous SDR Memory IC 4.5Mbit Parallel 117 MHSRAM
Specifications of IS64LF12836EC-7.5B3LA3
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | ISSI, Integrated Silicon Solution Inc |
| Package | Tray |
| Memory Type | Volatile |
| Memory Format | SRAM |
| Technology | SRAM - Synchronous, SDR |
| Memory Size | 4.5Mbit |
| Memory Organization | 128K x 36 |
| Memory Interface | Parallel |
| Clock Frequency | 117 MHz |
| Write Cycle Time - Word, Page | - |
| Access Time | 7.5 ns |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 165-TBGA |
| Supplier Device Package | 165-TFBGA (13x15) |
| Base Product Number | IS64LF12836 |
Specifications of IS64LF12836EC-7.5B3LA3
* Internal self-timed write cycle
* Individual Byte Write Control and Global Write
* Clock controlled, registered address, data and control
* Burst sequence control using MODE input
* Three chip enable option for simple depth expansion and address pipelining
* Common data inputs and data outputs
* Auto Power-down during deselect
* Single cycle deselect
* Snooze MODE for reduced-power standby
* JEDEC 100-pin QFP, 165-ball BGA and 119-ball BGA packages
* Power supply:
* LF: VDD 3.3V (± 5%), VDDQ 3.3V/2.5V (± 5%)
* VF: VDD 2.5V (± 5%), VDDQ 2.5V (± 5%)
* JTAG Boundary Scan for BGA packages
* Industrial and Automotive temperature support
* Lead-free available
* Error Detection and Error Correction
Applications of IS64LF12836EC-7.5B3LA3
The 4Mb product family features high-speed, low-power synchronous static RAMs designed to provide burstable,high-performance memory for communication and networking applications.
Environmental & Export Classifications of IS64LF12836EC-7.5B3LA3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B2A |
| HTSUS | 8542.32.0041 |
