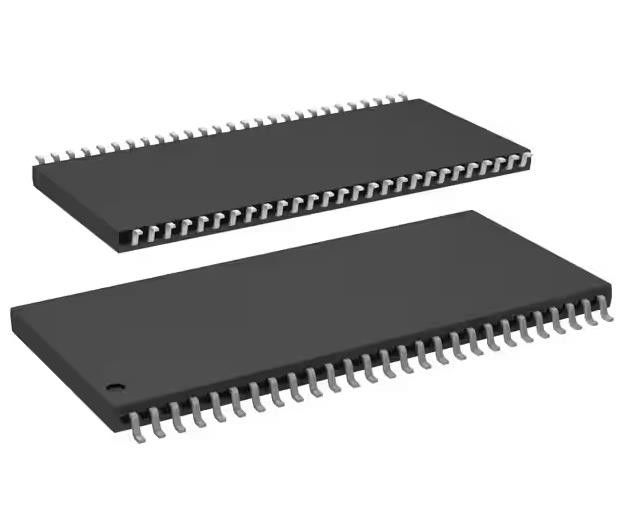

IS42S16320F-7TLI SDRAM Memory IC 512Mbit Parallel 143 MHz 5.4 ns 54-TSOP II
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IS42S16320F-7TLI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Technology: | SDRAM | Memory Size: | 512Mbit |
|---|---|---|---|
| Memory Organization: | 32M X 16 | Memory Interface: | Parallel |
| Clock Frequency: | 143 MHz | Access Time: | 5.4 Ns |
| Voltage - Supply: | 3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
IS42S16320F-7TLI SDRAM Memory IC 512Mbit Parallel 143 MHz 5.4 ns 54-TSOP II
Specifications of IS42S16320F-7TLI
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | ISSI, Integrated Silicon Solution Inc |
| Series | - |
| Package | Tray |
| Memory Type | Volatile |
| Memory Format | DRAM |
| Technology | SDRAM |
| Memory Size | 512Mbit |
| Memory Organization | 32M x 16 |
| Memory Interface | Parallel |
| Clock Frequency | 143 MHz |
| Write Cycle Time - Word, Page | - |
| Access Time | 5.4 ns |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 54-TSOP (0.400", 10.16mm Width) |
| Supplier Device Package | 54-TSOP II |
| Base Product Number | IS42S16320 |
Specifications of IS42S16320F-7TLI
• Clock frequency: 200, 166, 143 MHz
• Fully synchronous; all signals referenced to a positive clock edge
• Internal bank for hiding row access/precharge
• Power supply: Vdd/Vddq = 2.3V-3.6V
- IS42/45SxxxxxF - Vdd/Vddq = 3.3V
- IS42/45RxxxxxF - Vdd/Vddq = 2.5
• LVTTL interface
• Programmable burst length
– (1, 2, 4, 8, full page)
• Programmable burst sequence: Sequential/Interleave
• Auto Refresh (CBR)
• Self Refresh
• 8K refresh cycles every 64 ms
• Random column address every clock cycle
• Programmable CAS latency (2, 3 clocks)
• Burst read/write and burst read/single write operations capability
• Burst termination by burst stop and precharge command
• Packages: x8/x16: 54-pin TSOP-II, 54-ball TF-BGA (x16 only)
• Temperature Range:
- Commercial (0o C to +70o C)
- Industrial (-40o C to +85o C)
- Automotive, A1 (-40o C to +85o C)
- Automotive, A2 (-40o C to +105o C)
Applications of IS42S16320F-7TLI
ISSI's 512Mb Synchronous DRAM achieves high-speed data transfer using pipeline architecture.
Environmental & Export Classifications of IS42S16320F-7TLI
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0028 |
