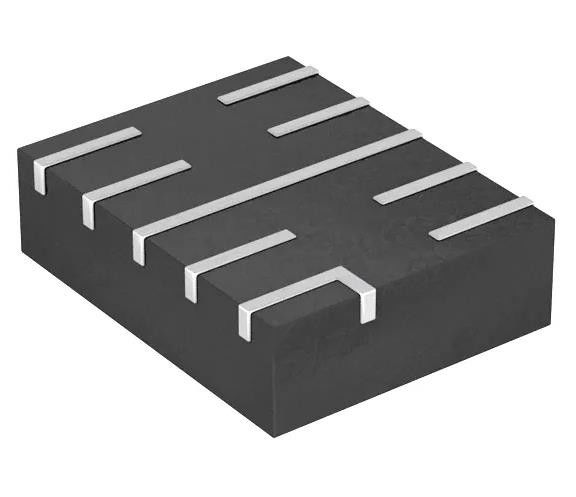

SP5003-04TTG 4 Line Common Mode Choke Surface Mount 100mA DCR
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SP5003-04TTG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | ESD | Number Of Lines: | 4 |
|---|---|---|---|
| Current Rating (Max): | 100mA | Operating Temperature: | -40°C ~ 125°C |
| Ratings: | AEC-Q101 | Mounting Type: | Surface Mount |
| Height (Max): | 0.032" (0.80mm) | Package / Case: | 10-WFDFN |
Product Description
SP5003-04TTG 4 Line Common Mode Choke Surface Mount 100mA DCR
Specifications of SP5003-04TTG
| TYPE | DESCRIPTION |
| Category | Filters |
| Common Mode Chokes | |
| Mfr | Littelfuse Inc. |
| Series | SP5003 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Filter Type | Signal Line |
| Number of Lines | 4 |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | - |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q101 |
| Approval Agency | - |
| Features | ESD |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height (Max) | 0.032" (0.80mm) |
| Package / Case | 10-WFDFN |
Features of SP5003-04TTG
• Large differential bandwidth > 4.0 GHz
• High Common Mode Stop Band Attenuation: > 16 dB at 900 MHz
• Common Mode Imped ance: Zc: 32Ω at 100 MHz
• TDFN-10 2.50mm × 2.00mm × 0.75mm package with 0.50mm lead pitch
• ±15kV ESD protection per channel (IEC 61000- 4-2 Level 4, contact discharge)
• RoHS-compliant, Leadfree packaging
• Moisture Sensitivity Level (MSL-1)
Decriptions of SP5003-04TTG
• HDMI/DVI Display in Mobile Phones
• MIPI D-PHY (CSI-2, DSI, etc) in Mobile Phones and Digital Still Cameras
Environmental & Export Classifications of SP5003-04TTG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8548.00.0000 |
