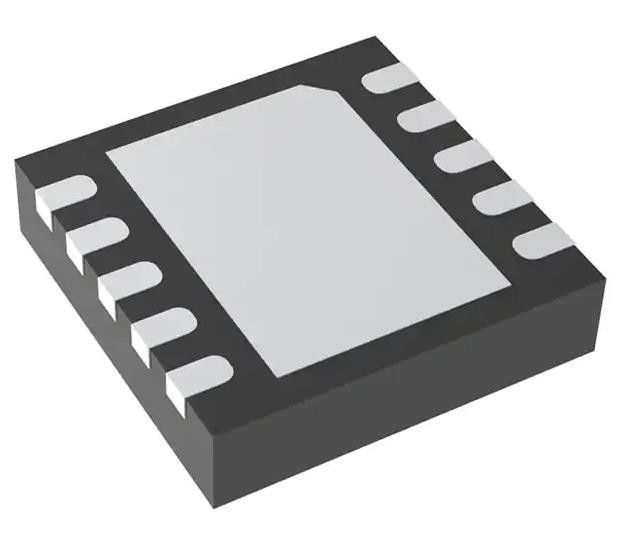

NCV8535MNADJR2G Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCV8535MNADJR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 12V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.25V | Voltage - Output (Max): | 10V |
| Voltage Dropout (Max): | 0.34V @ 500mA | Current - Output: | 500mA |
| Current - Quiescent (Iq): | 190 µA | Current - Supply (Max): | 14 MA |
Product Description
NCV8535MNADJR2G Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA
Specifications of NCV8535MNADJR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 10V |
| Voltage Dropout (Max) | 0.34V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 190 µA |
| Current - Supply (Max) | 14 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Base Product Number | NCV8535 |
Features of NCV8535MNADJR2G
• High Accuracy Over Line and Load (±0.9% at 25°C)
• Ultra−Low Dropout Voltage at Full Load (260 mV typ.)
• No Minimum Output Current Required for Stability
• Low Noise (31 Vrms w/10 nF Cnr and 51 Vrms w/out Cnr)
• Low Shutdown Current (0.07 A)
• Reverse Bias Protected
• 2.9 V to 12 V Supply Range
• Thermal Shutdown Protection
• Current Limitation
• Requires Only 1.0 F Output Capacitance for Stability
• Stable with Any Type of Capacitor (including MLCC)
• Available in 1.5 V, 1.8 V, 1.9 V, 2.5 V, 2.8 V, 2.85 V, 3.0 V, 3.3 V, 3.5 V, 5.0 V and Adjustable Output Voltages
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
Decriptions of NCV8535MNADJR2G
• PCMCIA Card
• Cellular Phones
• Camcoders and Cameras
• Networking Systems, DSL/Cable Modems
• Cable Set−Top Box
• MP3/CD Players
• DSP Supply
• Displays and Monitors
Environmental & Export Classifications of NCV8535MNADJR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
