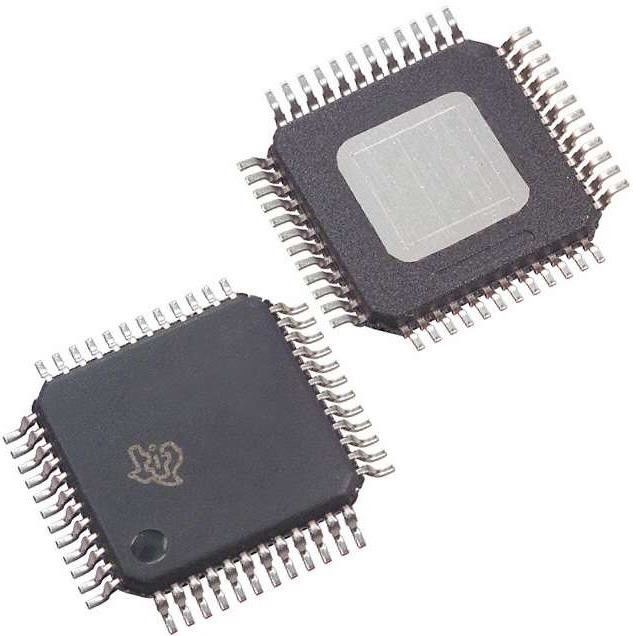

TUSB8020BPHPR USB Hub Controller USB 3.0 USB, GPIO, I²C, SMBus Interface
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TUSB8020BPHPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Protocol: | USB | Function: | Hub Controller |
|---|---|---|---|
| Interface: | USB, GPIO, I²C, SMBus | USB, GPIO, I²C, SMBus: | USB 3.0 |
| Voltage - Supply: | 1.1V, 3.3V | Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 48-PowerTQFP | Supplier Device Package: | 48-HTQFP (7x7) |
Product Description
TUSB8020BPHPR USB Hub Controller USB 3.0 USB, GPIO, I²C, SMBus Interface
Specifications of TUSB8020BPHPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| DigiKey Programmable | Not Verified |
| Protocol | USB |
| Function | Hub Controller |
| Interface | USB, GPIO, I²C, SMBus |
| Standards | USB 3.0 |
| Voltage - Supply | 1.1V, 3.3V |
| Current - Supply | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 48-PowerTQFP |
| Supplier Device Package | 48-HTQFP (7x7) |
| Base Product Number | TUSB8020 |
Features of TUSB8020BPHPR
• Two-Port USB 3.0 Compliant Hub, USBIF TID#330000057
• USB 2.0 Hub Features
– Multi-Transaction Translator (MTT) Hub: Two Transaction Translators
– Four Asynchronous Endpoint Buffers Per Transaction Translator
• Supports Battery Charging
– CDP Mode (Upstream Port Connected)
– DCP Mode (Upstream Port Unconnected)
– DCP Mode Complies With Chinese Telecommunications Industry Standard YD/T 1591-2009
• Support D+/D– Divider Mode
• Supports Operation as a USB 3.0 or USB 2.0 Compound Device
• Per Port or Ganged Power Switching and Overcurrent Notification Inputs
• OTP ROM, Serial EEPRO,M or I2C/SMBus Slave Interface for Custom Configurations:
– VID and PID
– Port Customizations
– Manufacturer and Product Strings (not by OTP ROM)
– Serial Number (not by OTP ROM)
• Application Feature Selection Using Terminal Selection or EEPROM/ or I2C/SMBus Slave Interface
• Provides 128-Bit Universally Unique Identifier (UUID)
• Supports On-Board and In-System OTP/EEPROM
Programming Through the USB 2.0 Upstream Port
• Single Clock Input, 24-MHz Crystal or Oscillator
• No Special Driver Requirements; Works Seamlessly on any Operating System With USB Stack Support
• 48-Pin HTQFP Package (PHP)
Applications of TUSB8020BPHPR
• Computer Systems
• Docking Stations
• Monitors
• Set-Top Boxes
Environmental & Export Classifications of TUSB8020BPHPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
