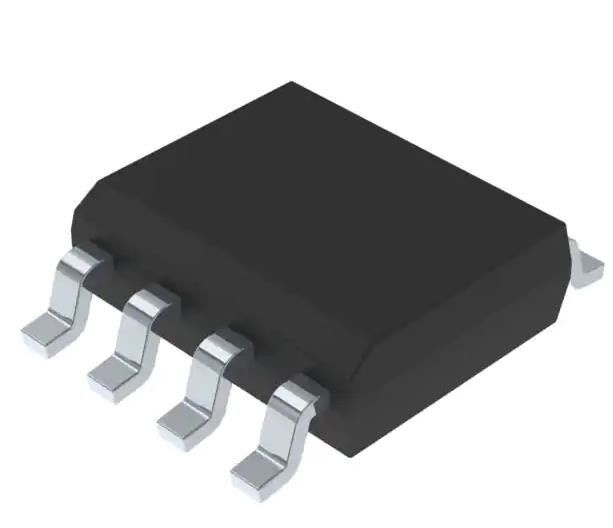

N25Q032A13ESCA0F FLASH - NOR Memory IC 32Mbit SPI 108 MHz 8-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | N25Q032A13ESCA0F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | FLASH |
|---|---|---|---|
| FLASH: | FLASH - NOR | Memory Size: | 32Mbit |
| Memory Organization: | 8M X 4 | Memory Interface: | SPI |
| Clock Frequency: | 108 MHz | Write Cycle Time - Word, Page: | 5ms |
Product Description
N25Q032A13ESCA0F FLASH - NOR Memory IC 32Mbit SPI 108 MHz 8-SO
Specifications of N25Q032A13ESCA0F
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Alliance Memory, Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 32Mbit |
| Memory Organization | 8M x 4 |
| Memory Interface | SPI |
| Clock Frequency | 108 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | N25Q032A13 |
Features of N25Q032A13ESCA0F
• SPI-compatible serial bus interface
• 108 MHz (MAX) clock frequency
• 2.7–3.6V single supply voltage
• Dual/quad I/O instruction provides increased throughput up to 432 MHz
• Supported protocols
– Extended SPI, dual I/O, and quad I/O
• Execute-in-place (XIP) mode for all three protocols
– Configurable via volatile or nonvolatile registers
– Enables memory to work in XIP mode directly after power-on
• PROGRAM/ERASE SUSPEND operations
Applications of N25Q032A13ESCA0F
The N25Q is a high-performance multiple input/output serial Flash memory device manufactured on 65nm NOR technology. It features execute-in-place (XIP) functionality, advanced write protection mechanisms, and a high-speed SPI-compatible bus interface. Innovative, high-performance, dual and quad input/output instructions enable double or quadruple the transfer bandwidth for READ and PROGRAM operations.
Environmental & Export Classifications of N25Q032A13ESCA0F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |
