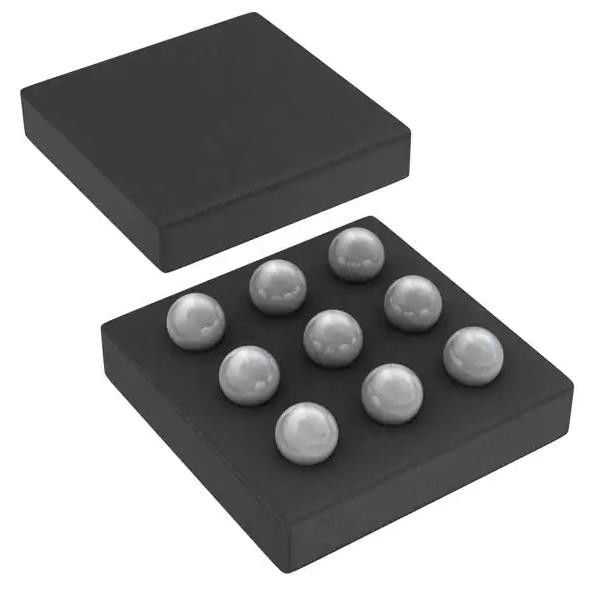

TPA2010D1YZFT Linear Integrated Circuits Amplifier IC 1-Channel Class D 9-DSBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPA2010D1YZFT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Depop, Differential Inputs, Shutdown, Thermal Protection | Type: | Class D |
|---|---|---|---|
| Output Type: | 1-Channel (Mono) | Max Output Power X Channels @ Load: | 2.5W X 1 @ 4Ohm |
| Voltage - Supply: | 2.5V ~ 5.5V | Operating Temperature: | -40°C ~ 85°C (TA) |
| Supplier Device Package: | 9-DSBGA | ||
Product Description
TPA2010D1YZFT Linear Integrated Circuits Amplifier IC 1-Channel Class D 9-DSBGA
Specifications of TPA2010D1YZFT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Texas Instruments |
| Series | NanoFree™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 2.5W x 1 @ 4Ohm |
| Voltage - Supply | 2.5V ~ 5.5V |
| Features | Depop, Differential Inputs, Shutdown, Thermal Protection |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 9-DSBGA |
| Package / Case | 9-UFBGA, DSBGA |
| Base Product Number | TPA2010 |
Features of TPA2010D1YZFT
* Maximum Battery Life and Minimum Heat
- Efficiency with an 8-Q Speaker:
- 88% at 400 mW
- 80% at 100 mWl
- 2.8-mA Quiescent Current
- 0.5-A Shutdown Current
* Only Three External Components
- Optimized PWM Output Stage Eliminates L(Output Filter
- Internally Generated 250-kHz SwitchingFrequency Eliminates Capacitor and Resistc
- lmproved PSRR (-75 dB) and Wide SupplyVoltage (2.5 V to 5.5 V) Eliminates Need forVoltage Regulator
- Fully Differential Design Reduces RFRectification and Eliminates Bypass Capacit
- lmproved CMRR Eliminates Two InputCoupling Capacitors
* Die-size ball grid (DSBGA)
- NanoFreeTm Lead-Free (YZF)
- NanoStarm SnPb (YEF)
Applications of TPA2010D1YZFT
* Wireless or Cellular Handsets and PDAs
* Personal Navigation Devices
* General Portable Audio Devices
* Linear Vibrator Drivers
Environmental & Export Classifications of TPA2010D1YZFT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
