TLV71715PDQNR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 4-X2SON
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV71715PDQNR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Voltage - Output (Min/Fixed): | 1.5V |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 5.5V |
| Voltage Dropout (Max): | 0.45V @ 150mA | Current - Output: | 150mA |
| Current - Quiescent (Iq): | 55 µA | ||
Product Description

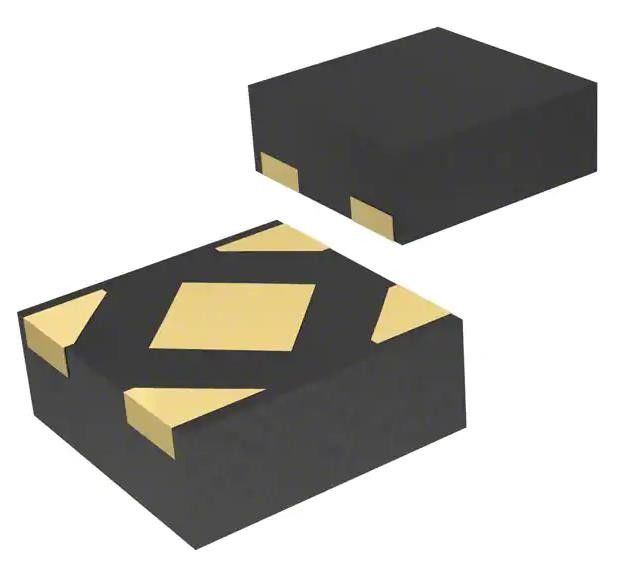

TLV71715PDQNR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 4-X2SON
Specifications of TLV71715PDQNR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 55 µA |
| PSRR | 70dB ~ 43dB (10Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-X2SON (1x1) |
| Base Product Number | TLV71715 |
Features of TLV71715PDQNR
• Very Low Dropout: 215 mV at 150 mA
• Accuracy: 0.5% (typical)
• Low IQ: 35 µA
• Available in Fixed-Output Voltages: 1.2 V to 5 V
• High PSRR:
– 70 dB at 1 kHz
– 50 dB at 1 MHz
• Stable With Effective Output Capacitance: 0.1 µF
• Foldback Current Limit
• Package: 1-mm × 1-mm DQN
Applications of TLV71715PDQNR
• PCs and Notebooks
• Smart Phones
• Portable Electronics and Battery-Powered Devices
• Electronic Point of Sale
Environmental & Export Classifications of TLV71715PDQNR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
