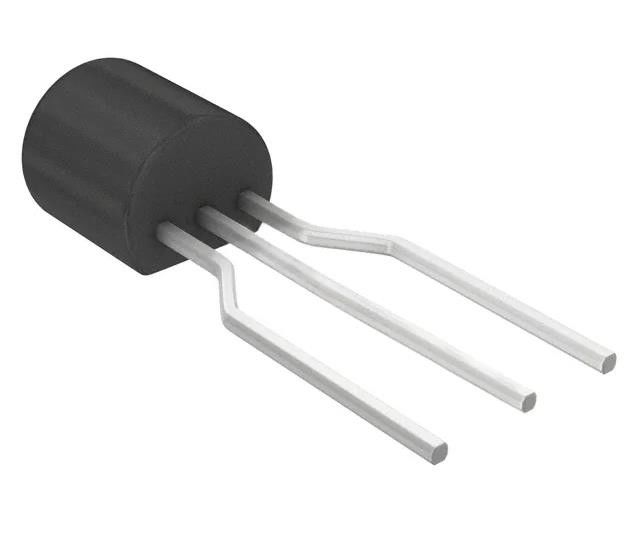

TLV431BLPRPG Shunt Voltage Reference IC Adjustable 1.24V 16 VV ±0.5% 20 mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV431BLPRPG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Reference Type: | Shunt | Voltage - Output (Min/Fixed): | 1.24V |
|---|---|---|---|
| Voltage - Output (Max): | 16 V | Current - Output: | 20 MA |
| Tolerance: | ±0.5% | Current - Cathode: | 80 µA |
Product Description
TLV431BLPRPG Shunt Voltage Reference IC Adjustable 1.24V 16 VV ±0.5% 20 mA
Specifications of TLV431BLPRPG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Box (TB) |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 16 V |
| Current - Output | 20 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 80 µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 |
| Base Product Number | TLV431 |
Features of TLV431BLPRPG
• Programmable Output Voltage Range of 1.24 V to 16 V
• Voltage Reference Tolerance ±1.0% for A Series, ±0.5% for B Series and ±0.2% for C Series
• Sharp Low Current Turn−On Characteristic
• Low Dynamic Output Impedance of 0.20 from 100 A to 20 mA
• Wide Operating Current Range of 50 A to 20 mA
• Micro Miniature TSOP−5, SOT−23−3 and TO−92−3 Packages
• NCV and SCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free and Halide−Free Devices
Applications of TLV431BLPRPG
• Low Output Voltage (3.0 V to 3.3 V) Switching Power Supply Error Amplifier
• Adjustable Voltage or Current Linear and Switching Power Supplies
• Voltage Monitoring
• Current Source and Sink Circuits
• Analog and Digital Circuits Requiring Precision References
• Low Voltage Zener Diode Replacements
Environmental & Export Classifications of TLV431BLPRPG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
